FCC ID: 2AJGM-UV5R
「Tri-Band Radio」The UV-5RX3 was specifically designed as a Tri-Band transceiver. The internal filtering allows not only the traditional VHF and UHF frequencies but also includes the 220-225 MHz Ham band for the US.
「Classic 5R-Plus Design」UV-5RX3 continues the classic 5R-Plus design with a glossy metal shell. It shares almost all the accessories with Baofeng UV-5R Plus.
「What's More」Two antennas included. One is for the standard VHF/UHF band and the additional one is specifically tuned for 220 MHz.
「Features & Programming」▶ Tri-Color Display ▶ DTMF Access ▶ It also supports PC programming software via cable.
CLICK HERE to download software, manual or programming tips.
CLICK HERE to download CHIRP. Support CHIRP quick programming.
What's Baofeng UV-5RX3
UV-5RX3 is a compact, ergonomically-designed multi-band HT which balances cost, functionality and reliability. It provides a real 5 watts in the frequency range of VHF, UHF, as well as an extra band 1.25M.
No other HT can compete with this tri-band wonder! It provides unmatched performance, value and reliability.
► 1.25m Band
Isn't it time to experiment with the 220mhz band?
UV-5RX3 gives you capabilities on the 1.25 meter 220mhz band at an unbeatable price. Its frequency range is 220-225MHz. There is no lower-cost
way to gain "220" capabilities.

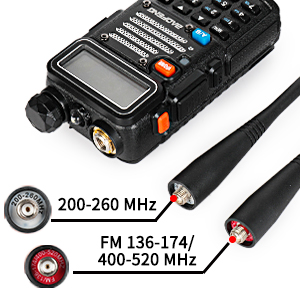

► Single/Dual Band Antenna
UUV-5RX3 comes with two antennas that can be switched around depending on the band you wish to use. A 220MHz Band antenna is provided as well as one for 2 meters and 450mhz. You can also have us include a Radioddity RD-301 Tri-band antenna (not included in the package) for a one antenna solution.
► Compatible with UV-5R Accessories
UV-5RX3 has the traditional 5R-Plus case design, which means that it works with all the 5R accessories including tri-band female antenna, programming cable, car charger, speaker, earpiece, 3800mAh battery, etc.
► Long Range Communication
The talking range of UV-5RX3 is up to 5.5 miles if using high power output in the open area. Please note that different environments might lead to different talking distance of the walkie talkie.
► Tri-color LCD Display
A large, easy to read screen with three selectable colors, the bright backlit and LED flashlight, allow to use the radio in dark.
Specifications & Functions:
Frequency Range: 136-173.975MHz, 220-225MHz, 400-519.975MHz
FM Radio: 68-105MHz (RX)
Memory Channel: 128
Output Power: 5 Watts
Tone Scanning: CTCSS, DCS
Wide/Narrow Bandwidth Setting
Antenna Type: Compatible with SMA-Female Antenna
Earpiece & Programming Type: Compatible with K-plug earpiece/cable
Various Occasions Using
1 x UV-5RX3
1 x 1800mAh Li-ion Battery
1 x Dual Band Antenna
1 x 220MHz Single Band Antenna
1 x Desktop Charger
1 x Adapter
1 x Original Earpiece
1 x Wrist Strap
1 x Belt Clip
1 x User Manual
1 x FRER programming cable
Review of Baofeng UV-5RX3
1 Year and 6 months Manufacturer's Warranty.
• Radioddity's limited warranty applies to all BRAND NEW items sold by radioddity.com and other authorized dealers.
• This warranty is non-transferable and proof of purchase from us or an authorized dealer is required for warranty service.
What Does This Limited Warranty Cover?
We warrant that the Products are free from defects in materials and workmanship under normal use and use in accordance with the respective Product user manual, during the Warranty Period. Please refer to the Instructions inside each package for a description of proper use and care of the unit.
What Does This Limited Warranty Not Cover?
This limited warranty does not cover damages directly or indirectly arising or resulting from or during:
(1) accident, misuse, abuse, vandalism or acts of God (including lightning and other weather conditions)
(2) use with another product or other damage or loss suffered by the use or combination of any other item
(3) improper or inadequate maintenance
(4) repairs by an unauthorized service technician
(5) normal wear and tear
