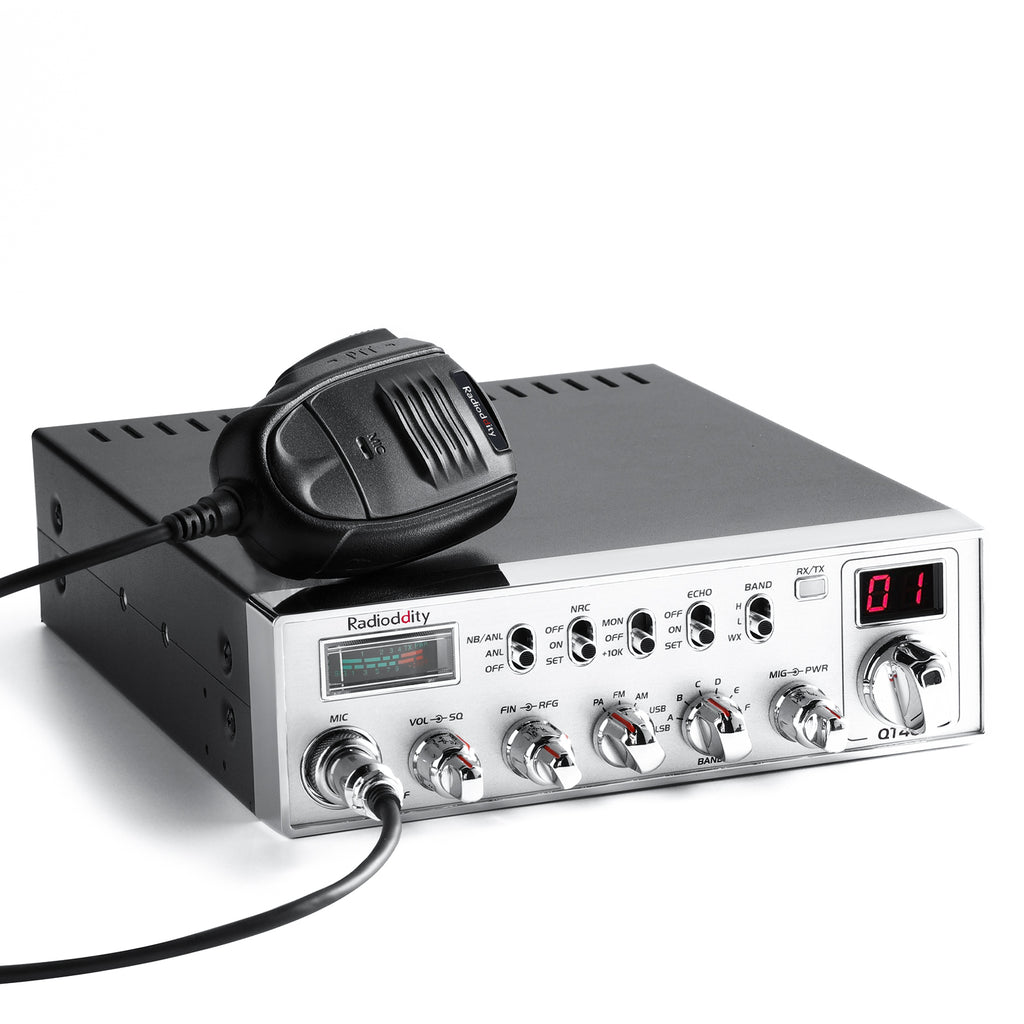

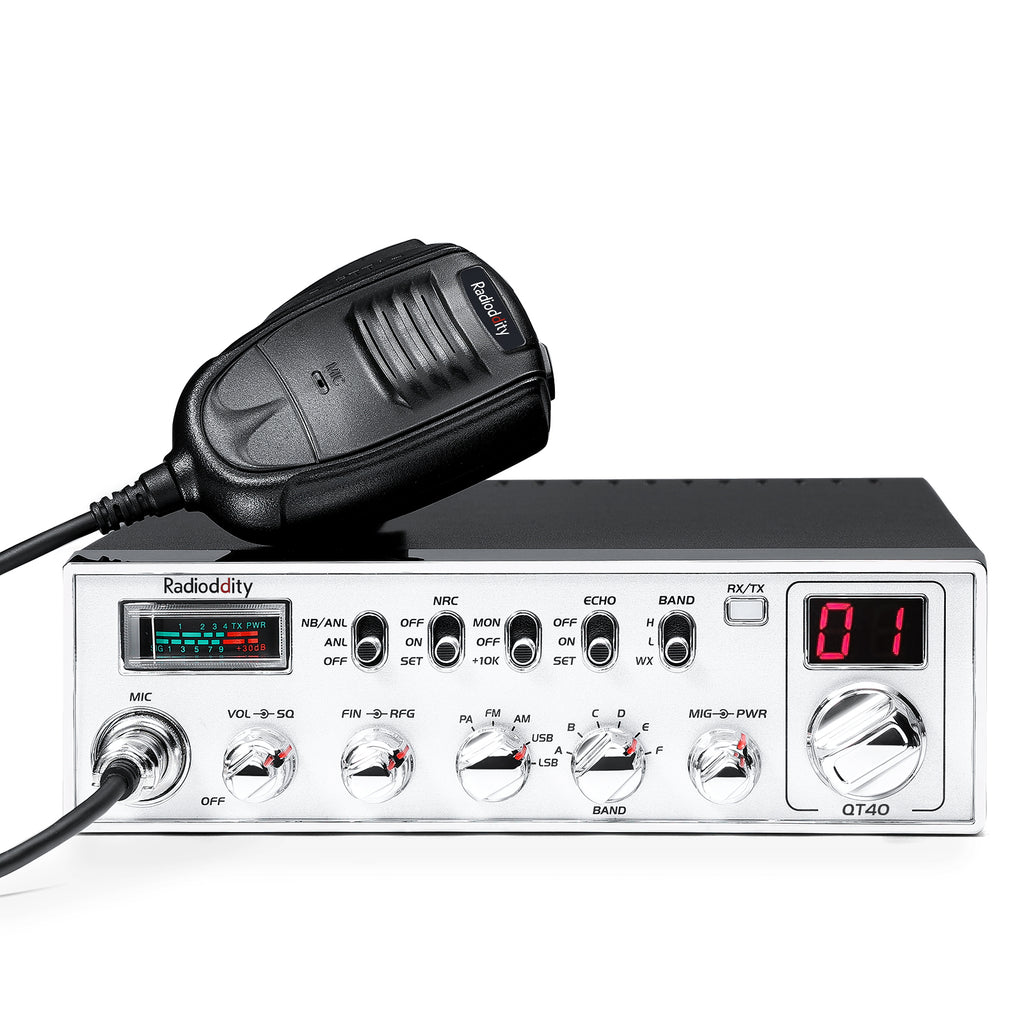

Radioddity QT40 is a versatile and powerful communication solution for amateur radio enthusiasts. With advanced digital noise reduction technology, this radio is designed to provide clear and intelligible audio, even in noisy environments. It offers multiple modes of operation, including FM, AM, USB, LSB, and PA modes, giving you the flexibility to choose the best modes. With a maximum power output of 40 watts, this ham radio offers exceptional range and signal strength, making it ideal for long-distance communication. The QT40 is built with high-quality components and durable construction, providing reliable performance over the long term.
Features
- FM/AM/USB/LSB/PA modes
- Weather Channel with Alert and FM receiver 140-170MHz
- CTCSS/DCS Codes, with separate settings for TX and RX
- TX & RX Background Noise Reduction(NRC)
- PC programmable
- Scrolling Frequency Display Function
- SQ, ASQ Function
- RF Gain Adjustment
- Microphone Gain Adjustment
- RF PWR Adjustment
- PWR/RX RSSI S-Meter
- NB/ANL Function
- FM Repeater Offset Function(+/- 100kHz)
- +10KHz Function
|
- Beep Level Adjustment
- TOT Function
- HI-CUT Function
- Busy Channel Lock
- TX Audio Monitor
- LED Brightness Adjustment
- SWR Readout and High SWR Protection
- Voltage Protection
- VOX Function
- Programmable Roger Beep
- Echo Function
- NPC function
- SCAN function
|
AM/FM/SSB
Whether you're tuning into your favorite FM/AM radio station, monitoring the latest weather updates, or communicating in SSB (LSB/USB)/PA modes, this radio has got you covered.
TX & RX Background Noise Reduction
Say goodbye to static-filled conversations. The QT40 features digital noise reduction technology that filters out unwanted background noise, providing you with crisp and clear audio.
Hand-free VOX
Thanks to the VOX function, you can keep your hands free while communicating. The QT40 automatically detects your voice and starts transmitting, allowing you to focus on driving or other tasks while staying in contact.
| # General Specifications |
|
| Frequency Range: |
28.000-29.695MHz (Programmable) |
| Frequency Band: |
L/H band: A/B/C/D/E/F
WX/VHF RX:140-170MHz |
| Channel: |
480 (40 programmable per band) |
| Frequency Control: |
Phase-Locked-Loop Synthesizer |
| Frequency Tolerance: |
± 5.0 ppm |
| Temperature Range: |
-20°C to 50°C |
| Microphone: |
with PTT/UP/DN and coiled cord |
| Input Voltage: |
13.8V |

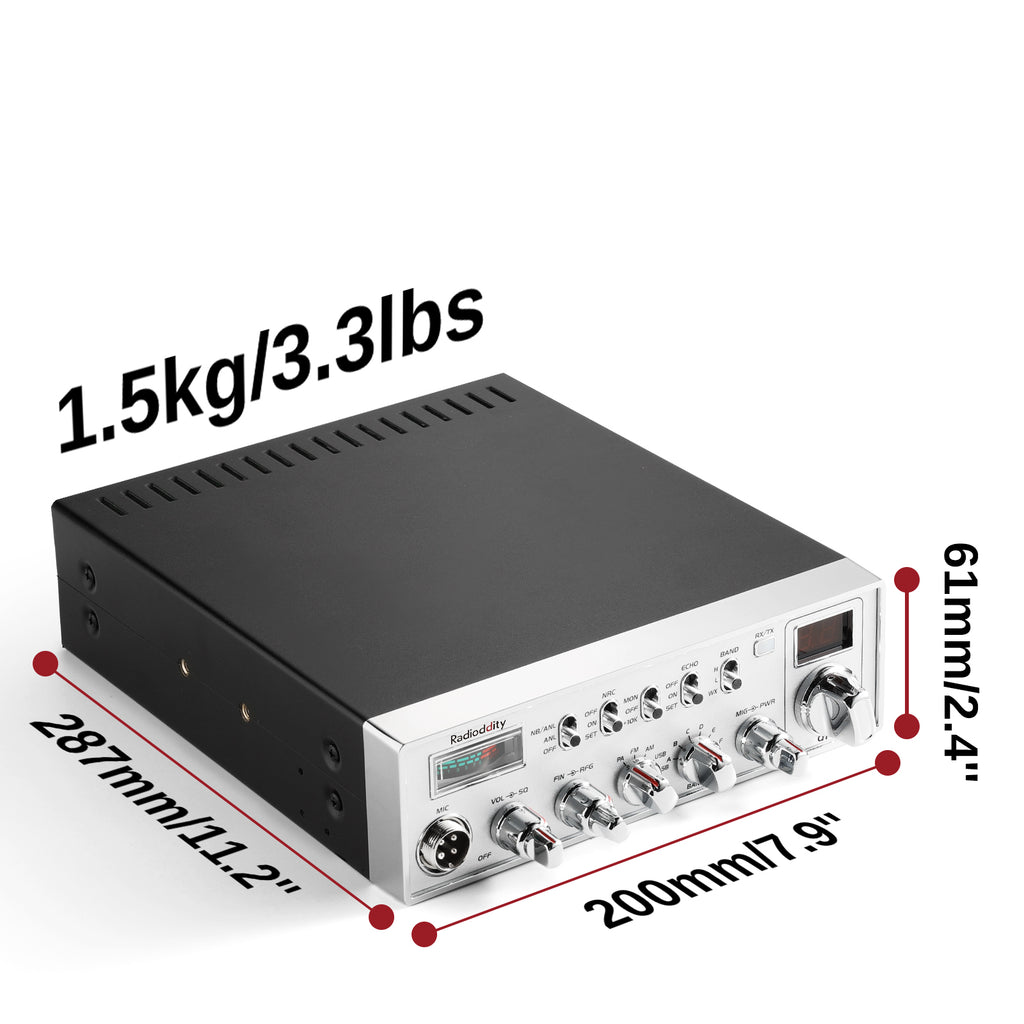

| Dimensions: |
29 x 20 x 6cm | 11.2 x 7.9 x 2.4in |
| Weight: |
1.5kg | 3.3lbs |

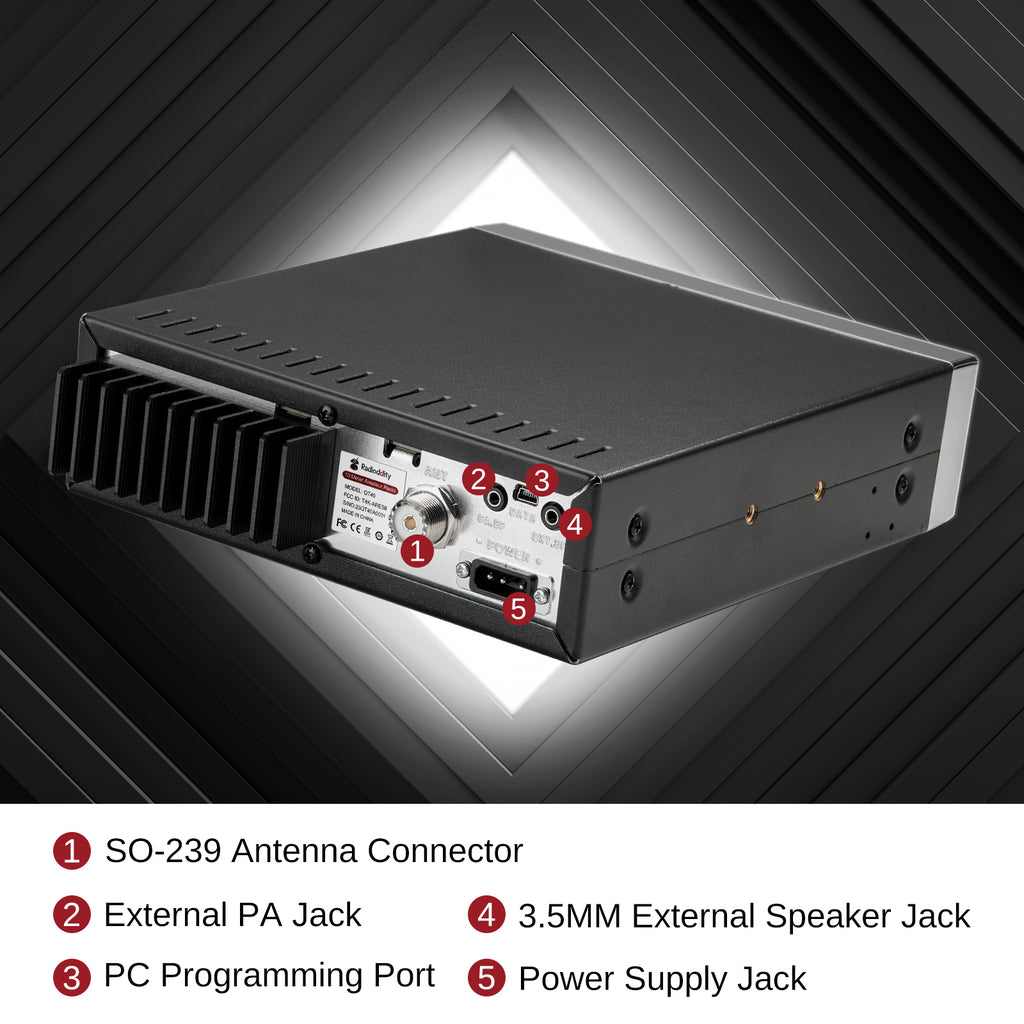

| Antenna Connector: |
UHF, SO-239 |
|
|
| # Transmitter |
|
| Power Output: |
AM:1-12W (adjustable)
FM:1-40W (adjustable)
USB/LSB:1-35W (adjustable) |
| Drain: |
8A (with modulation) |
| Modulation: |
FM/AM/SSB |
| Inter-modulation Distortion: |
SSB: 3rd order, more than -25dB;
SSB: 5th order, more than -35dB |
| SSB Carrier Suppression: |
55dB |
| Unwanted Sideband: |
50dB |
| Frequency Response: |
AM/FM: 450 to 2500Hz |
| Output Impedance: |
50ohms, unbalanced |
| # Reception |
|
| Sensitivity: |
AM:1.0μV for 10 dB(S+N)/N @ > ½ watt of audio output.
FM: 1.0 μV for 20 dB (S+N)/N @ > ½ watt of audio output.
SSB: 0.25μV for 10dB(S+N)/N @ > ½ watt of audio output. |
| Selectivity: |
AM/FM:6dB@3KHz,50dB @9KHz
SSB: 6 dB@2.1KHz,60dB @3.3KHz |
| Adjacent-Channel Selectivity: |
60dB AM/FM &70 dB SSB |
| Image Rejection: |
More than 65dB |
| IF Frequency: |
AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF
SSB: 10.695 MHz |
| RF Gain Control: |
45dB adjustable for optimum signal reception |
| Automatic Gain Control(AGC): |
Less than 10dB change in audio output for inputs from 10 to 100,000μV |
| Squelch: |
Adjustable; threshold less than 0.5 μV.
Automatic Squelch Control(only AM/FM)0.5 μV |
| ANL (Active Noise Limiter): |
Switchable |
| Noise Blanker: |
RF type, effective on AM/FM and SSB |
| Audio Output Power: |
3 watts into 8 ohms |
| Audio Distortion: |
< 3% |
| Frequency Response: |
AM/FM: 300 to 2800 Hz |
| Built-in Speaker: |
8 ohms, round |
| FM Modulation Level: |
2.8 Khz |
FAQ
Q: To start a scan, I have to press the up or down button on the microphone for 7 seconds, any chance to shorten the pressing time?
A: The long press is not only related to scanning but also fast switch channels. It is necessary to consider the customer's need to switch channels quickly. Therefore, when the button is pressed for less than 7 seconds, it quickly switches the channel. If it exceeds 7 seconds, the scanning function starts.
Q: How to fast export and import to help manage 480 channels?
A: Sorry, the QT40 framework do not support batch import and export function.
Recommended Accessories (not included in the package)
1.Radioddity CB External Speaker
2. Xiegu GY03 External Speaker
3. Radioddity RA-M5 Antenna Magnet Mount
4. Radioddity PC003 Programming Cable
5. Radioddity CBL-561 Antenna
6. Radioddity RS58 External Speaker

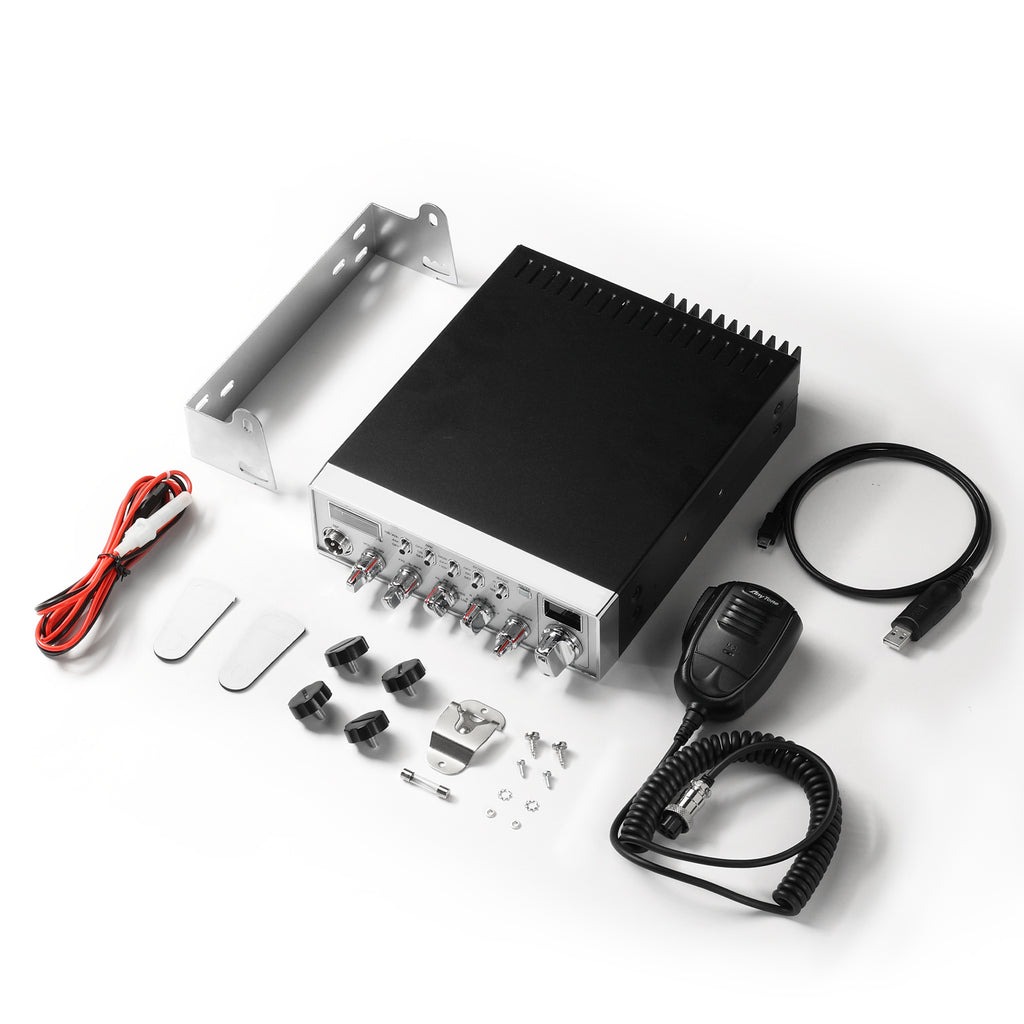

What’s in the box?
1 x Radioddity QT40 Radio
1 x Speaker Microphone
1 x USB Programming Cable
Accessories
1 x Mounting Bracket
1 x Microphone Hanger
2 x Adhesive Case Protection
1 x DC Power Cable
2 x Screw for Bracket
2 x Pad for Bracket
2 x Adjusting Screw
1 x Spare Fuses(10A, 250V)
2 x Self-tapping Screw
2 x Pad
QT40
QT60 Pro
QT80
https://www.radioddity.com/products/radioddity-qt40
https://www.radioddity.com/products/radioddity-qt60
https://www.radioddity.com/products/radioddity-qt80
Frequency Range
Frequency Band
Output Power
Channel
Modulation
Input Voltage
Background Noise Reduction
NOAA
Screen
Mic Gain
Automatic Squelch Control
Talk Range Maximum
28.000-29.695MHz@@L/H band: A/B/C/D/E/F
WX/VHF RX:140-170MHz@@AM:1-12W/FM:1-40W/USB/LSB:1-35W@@480(40 programmable per band)@@FM/AM/SSB@@13.8V@@✔@@✔@@ @@ @@✔@@300-1000km(186-621miles)
28.000-29.700MHz@@A/B/C/D/E/F/G/H/I+WX@@60W/FM:50W/SSB:60W(PEP)@@40 default channels in each band@@AM/FM/USB/LSB/CW@@13.8V@@✔@@✔@@LCD Screen@@✔@@✔@@300-1000km(186-621miles)
28.000-29.700MHz@@A/B/C/D/E/F/G/H/I + VFO@@AM: 80W(PEP)/FM:50W/SSB: 80W(PEP)@@40 channels (programmable) in each band@@FM/AM/USB/LSB/CW@@13.8V@@✔@@✔@@LCD Screen
(7-Color Adjustable)@@✔@@✔@@300-1000km(186-621miles)
|  |  |  |
| QT40 | QT60 Pro | QT80 |
Frequency Range | 28.000-29.695MHz | 28.000-29.700MHz | 28.000-29.700MHz |
Frequency Band | L/H band: A/B/C/D/E/F
WX/VHF RX:140-170MHz | A/B/C/D/E/F/G/H/I+WX | A/B/C/D/E/F/G/H/I + VFO |
Output Power | AM:1-12W/FM:1-40W/USB/LSB:1-35W | 60W/FM:50W/SSB:60W(PEP) | AM: 80W(PEP)/FM:50W/SSB: 80W(PEP) |
Channel | 480(40 programmable per band) | 40 default channels in each band | 40 channels (programmable) in each band |
Modulation | FM/AM/SSB | AM/FM/USB/LSB/CW | FM/AM/USB/LSB/CW |
Input Voltage | 13.8V | 13.8V | 13.8V |
Background Noise Reduction | ✔ | ✔ | ✔ |
NOAA | ✔ | ✔ | ✔ |
Screen | | LCD Screen | LCD Screen
(7-Color Adjustable) |
Mic Gain | | ✔ | ✔ |
Automatic Squelch Control | ✔ | ✔ | ✔ |
Talk Range Maximum | 300-1000km(186-621miles) | 300-1000km(186-621miles) | 300-1000km(186-621miles) |
|
|
