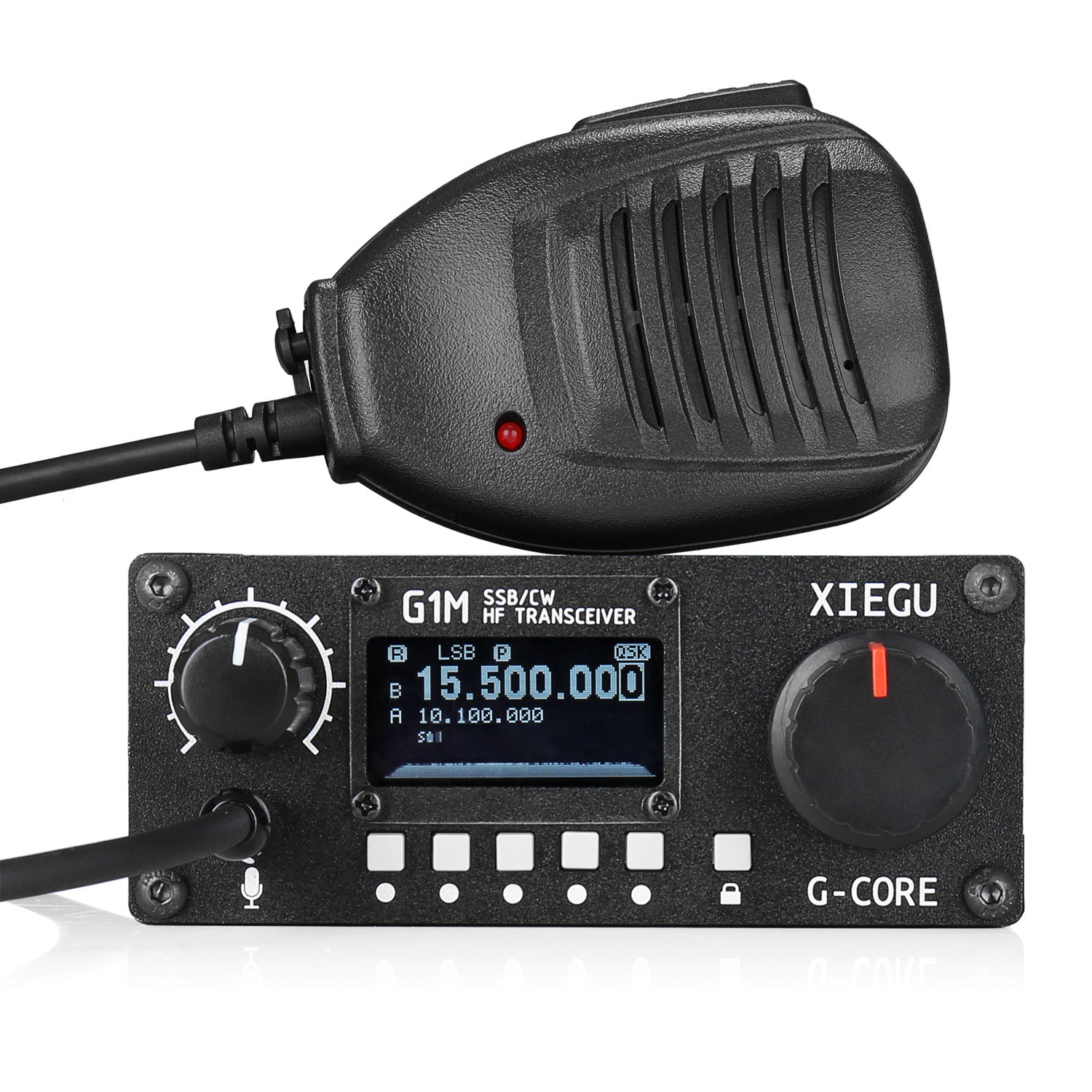

XIEGU G1M HF Transceiver | Quad Band | Portable SDR | QRP | 5W SSB CW AW

Write a review
SKU: 28-715-003
  • Regular price $299.99
  • Regular price $299.99 SAVE $0.00

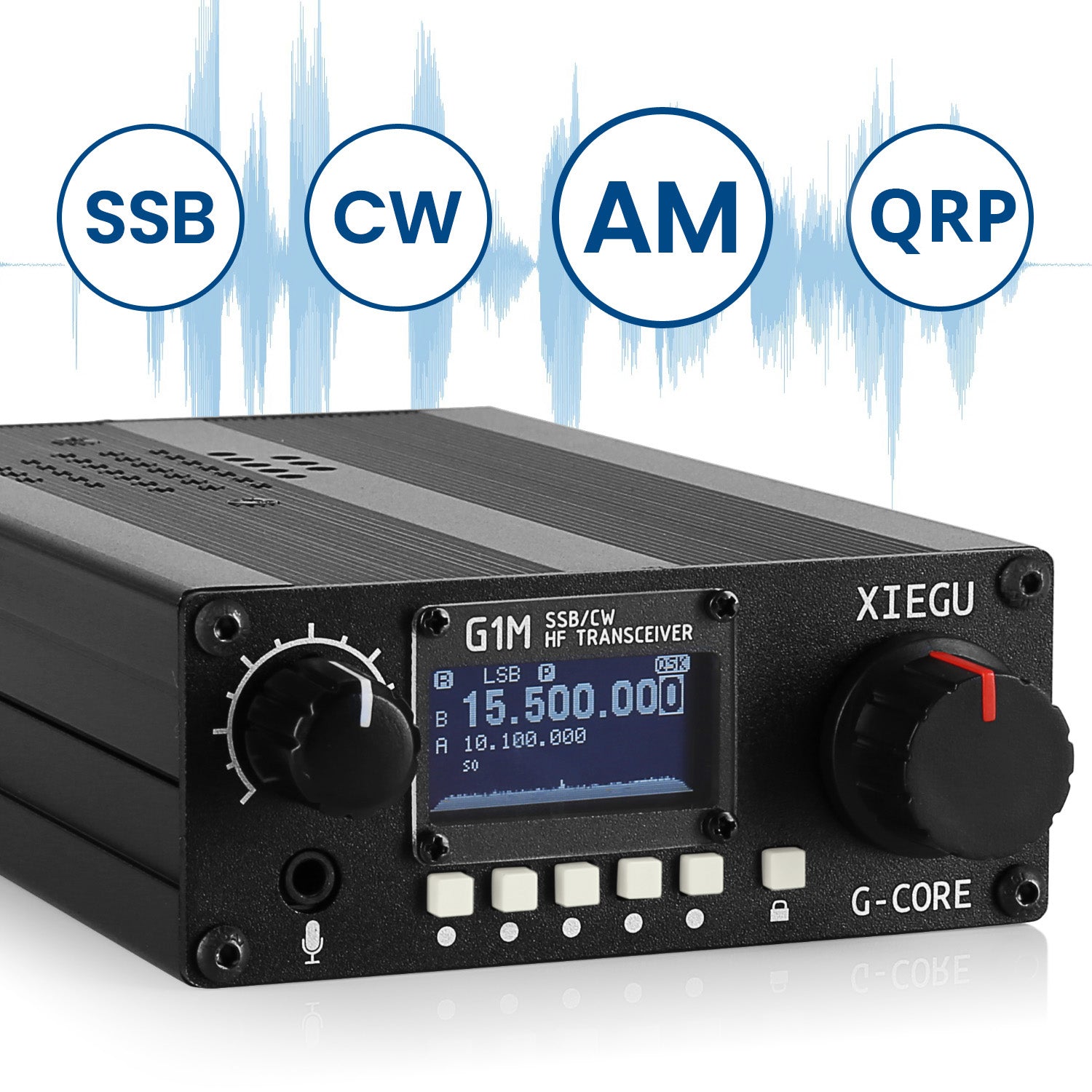

[Mini Five Watt QRP Transceiver] – Receiving Capability 0.5-30 MHz General Coverage and transmitting capabilities on four most popular amateur radio bands, the G1M is a highly portable QRP transceiver and has a clear and bright OLED screen.

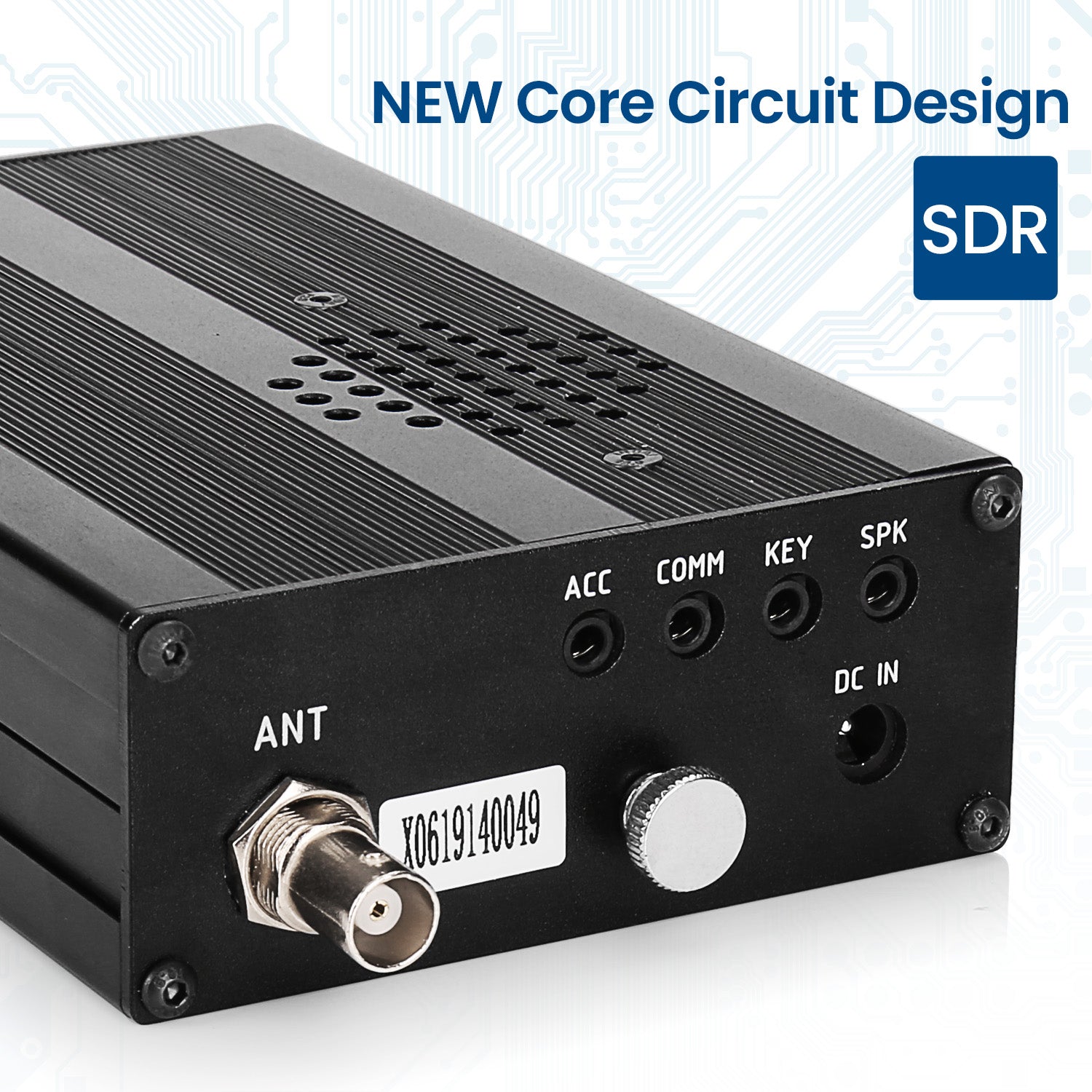

[NEW SDR Core Circuit Design] - With SDR structure, the G1M’s core is based on 16 bit-CODEC sampling and has excellent performance in a compact size.

[NEW AM Receiving Mode] - The newly added AM receiving mode allows you to listen to news radio from around the world.

[CW Reception] - The 800Hz narrowband CW digital filter makes Morse Code transmissions easier and clearer to decode.

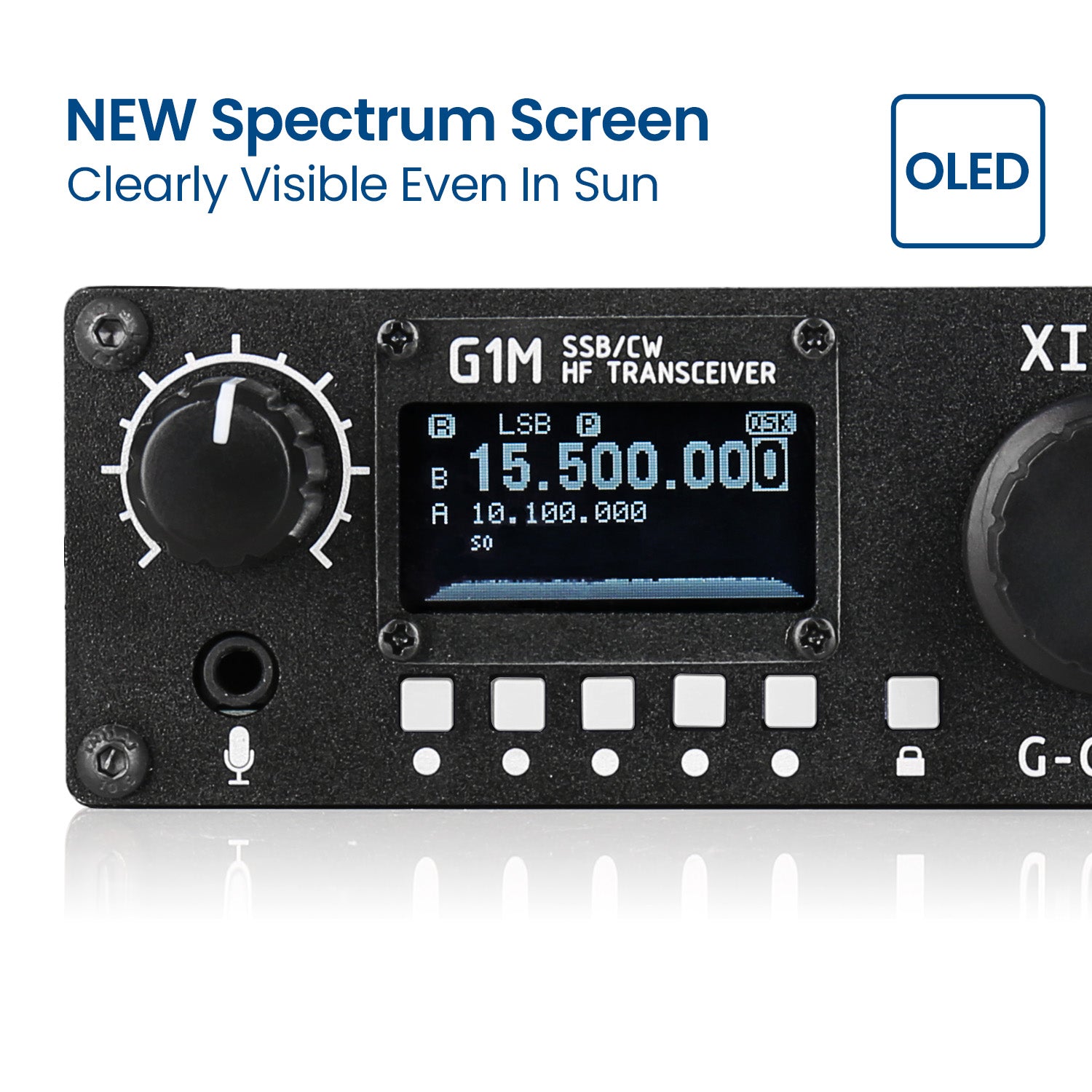

[NEW Spectrum Display] – The G1M uses a bright OLED display screen that displays all status information, which is of great convenience to use. The screen effect is clear even in sunlight.

[Warranty Note] - We provide a 1 year warranty on the Xiegu G1M. As usual, if you modify the radio's hardware, the warranty is void.


CLICK HERE to download the user manual.


Features
• High Performance SDR Core Circuit Design
• Bright OLED Display + Spectrum Display
• NEW AM Broadcast Receiving Mode
• NEW Added CW Trainer Function
• Adaptive Speech Noise Reduction processing
• HF Continuous ReceiverTuning
• Supports Data Communication Mode
• Supports Connection interfacing with PC
• Supports Manual / Automatic CW Key operation for Straight or Iambic Keys (see below)
• Supports Connection with XPA125 / XPA125B / XPA20 Amplifiers
• Adjustable AGC Control


Note: Please do not randomly change the settings of the factory configuration menu, or the whole machine may be damaged or function abnormally!

Supports Connection with a PC: With 3.5mm socket, G1M can connect to a computer for data modes using aftermarket soundcards. As an example Tigertronics Inc. sells a G1M kit developed with a G1M user, for data modes, others are available as well.
Also, via new interfaces G1M can easily connect to the XPA125/XPA125B /XPA20 amplifiers.

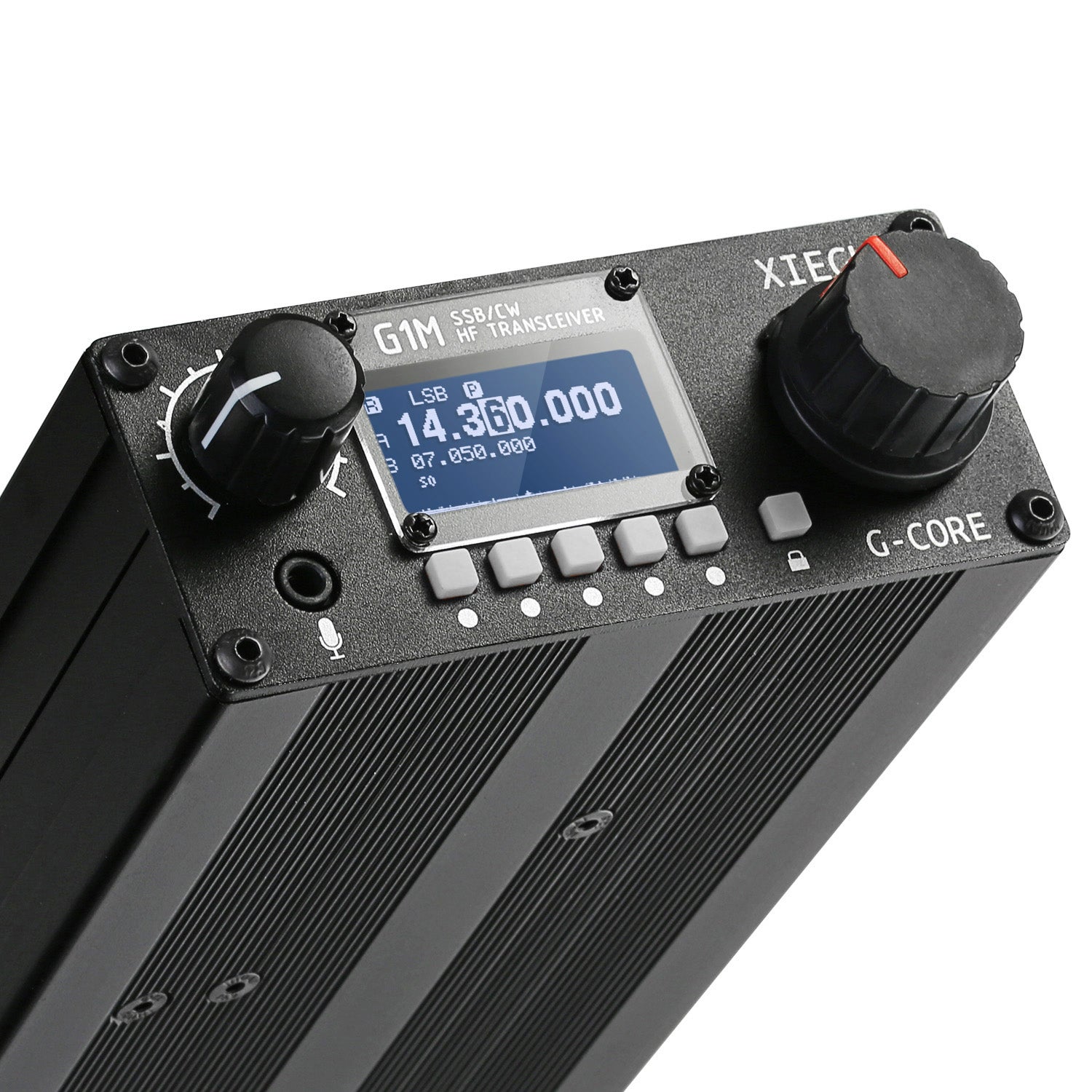

Clear OLED Display: All the function changes are clearly shown on the display. The screen is clear even in sun.

Support Key Mode Selection: You can choose manual or automatic mode, left-hand mode or right-hand mode as you desire via multi-function buttons.



Specifications
Receiving Frequency: 0.5~30MHz(Continuous)
Transmitting Frequency:
3.5~4.0MHz
7.0~7.3MHz
14.0~14.35MHz
21.0~21.45MHz
Operating Mode: SSB/CW/AM (AM is only used to receive broadcasts)
Receiving Sensitivity: 0.45uV 12dB SINAD
Receiving Dynamics: 90dB
Transmit Power: 5W 13.8V DC
Spurious Suppression: ≥45dB
Frequency Stability: ±1.5ppm (30 minutes after turning on the power)
Audio Output Power: 0.5W
Operating Voltage: 12~15V DC
Stand-by Current: 0.5A max
Transmitting Current: 2.5A max
Wavelength: short-wave including four amateur radio bands

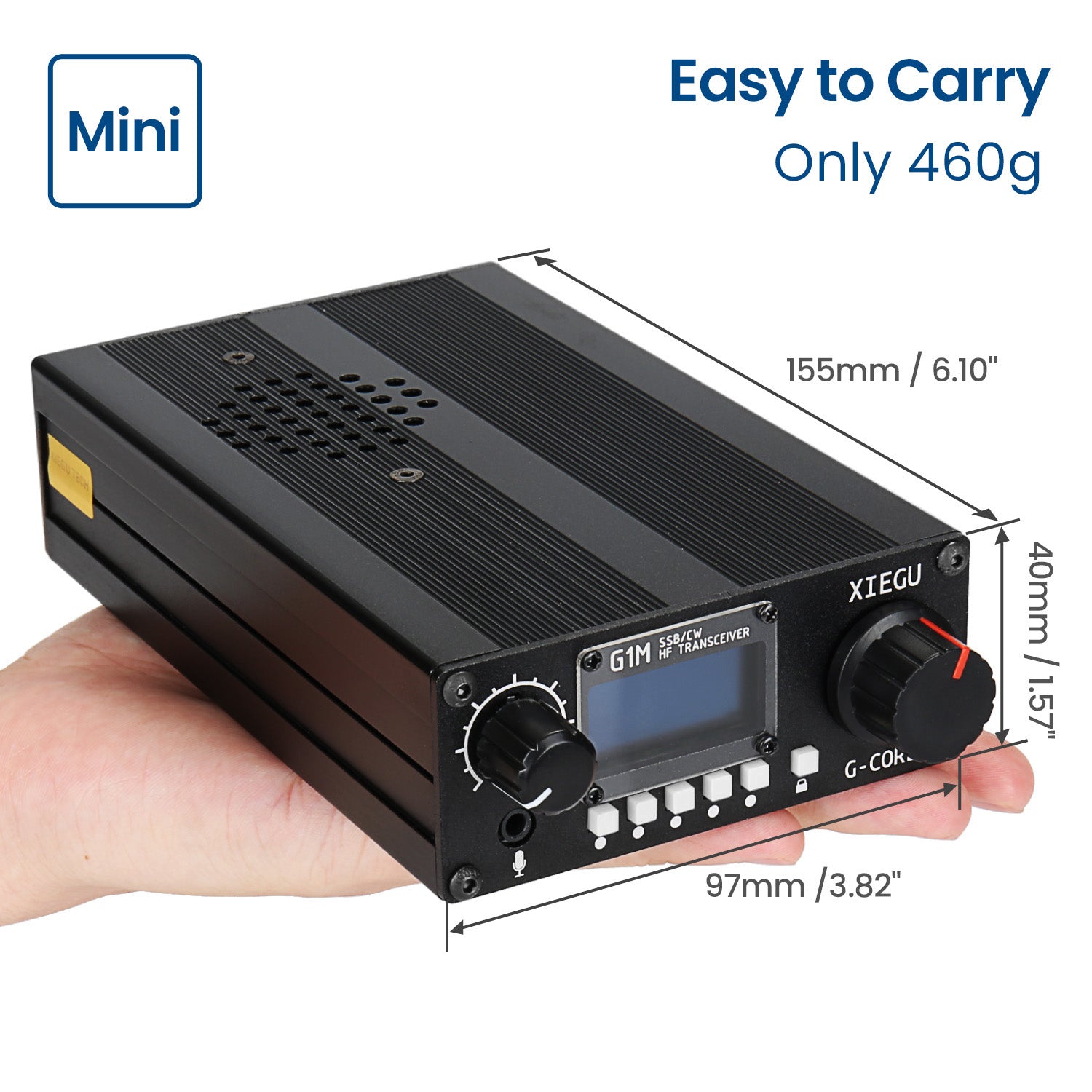

Case Size: 97*40*155 (mm)
Antenna Socket: BNC connector
Certification: CE, FCC (ES190111036E)

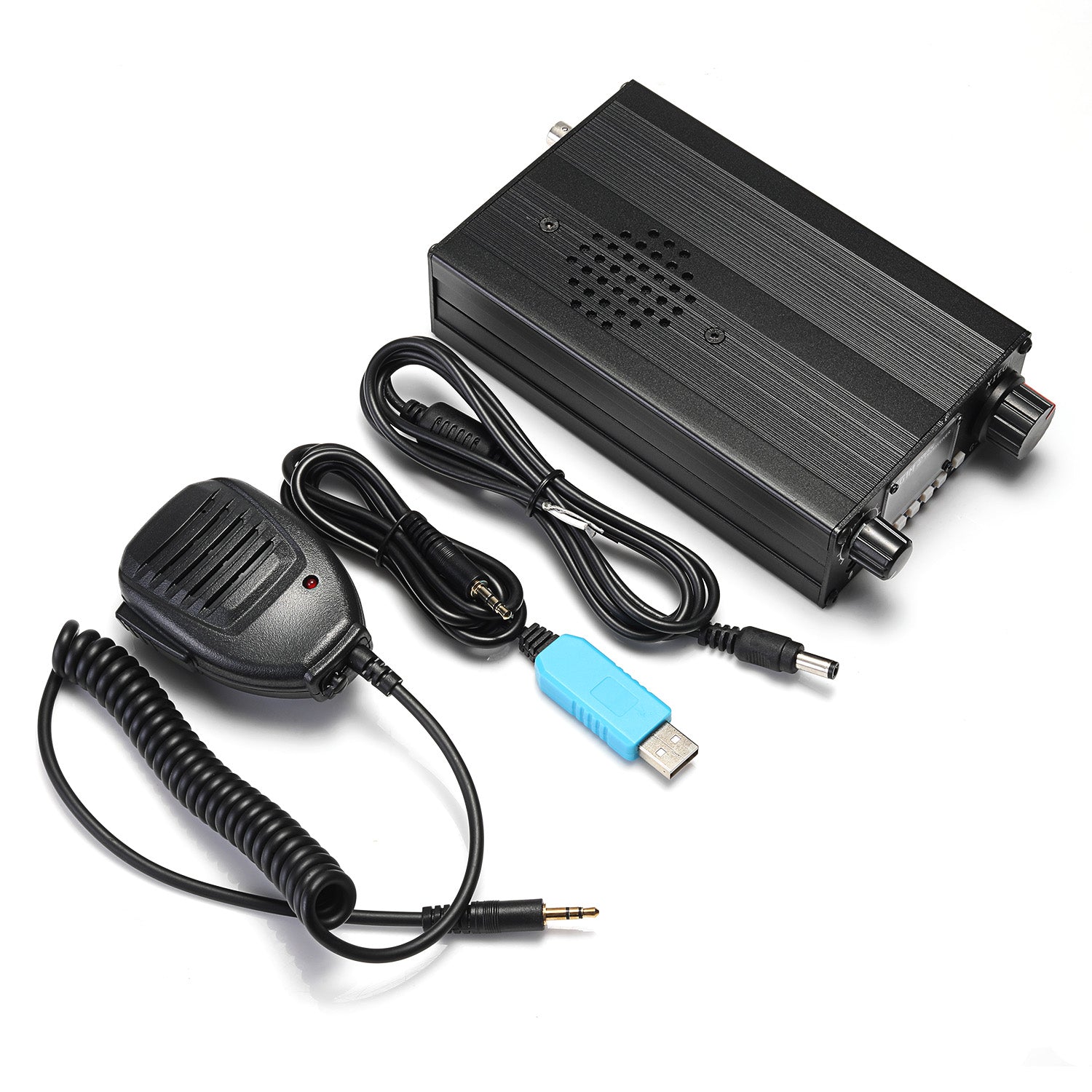

Package Content

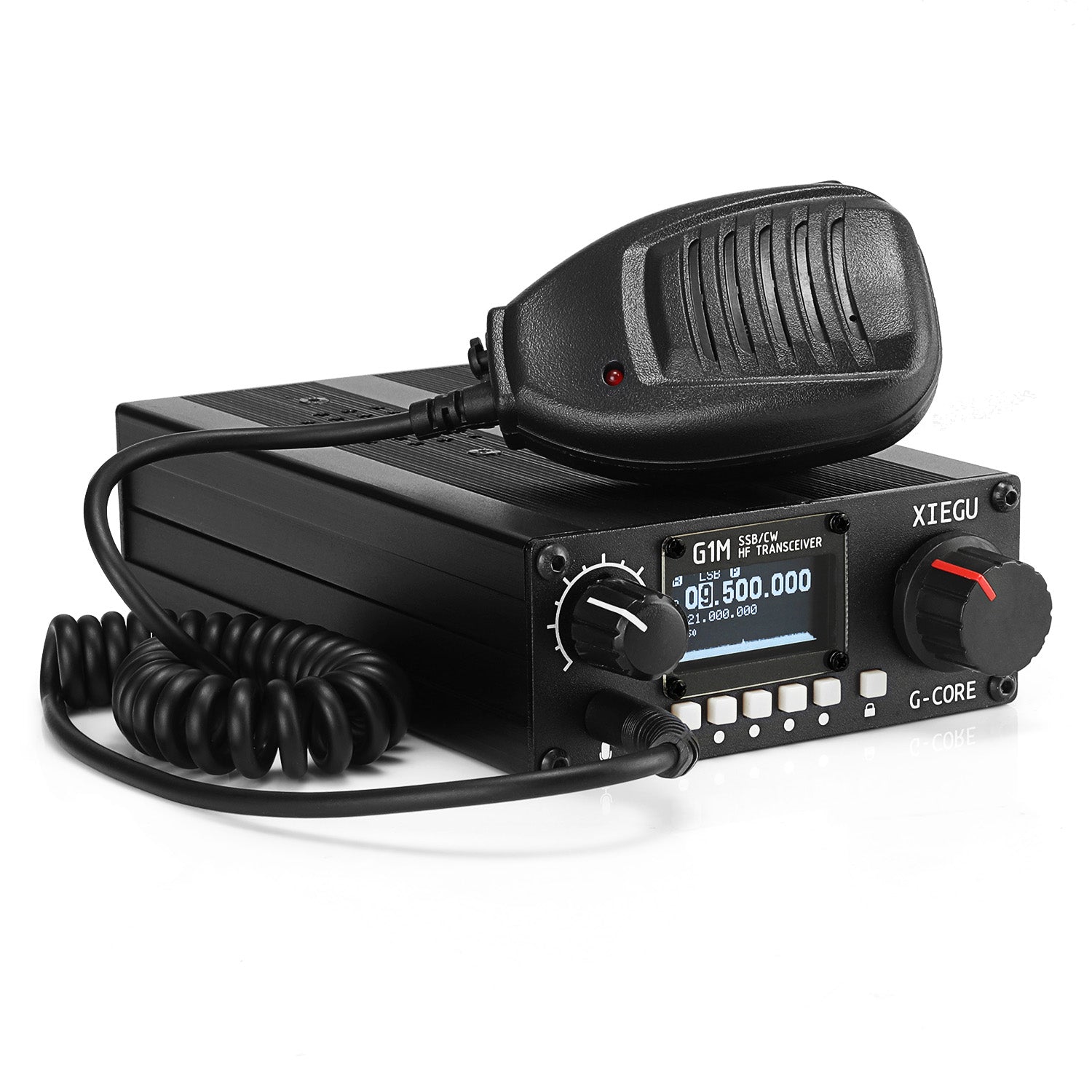

1x G1M HF Transceiver
1x Speaker Mic
1x Coaxial Power Cable
1x English Manual
1x Certificate
1x Warranty Card
