FCC ID: 2AJGM-BFA58
► This is a dustproof and waterproof two-way radio. After 30 minutes dropped into water, the radio still works very well. It ensures BF-9700's reliability in wet environments. No matter where you are, swimming pool or desert, you may enjoy with BF-9700!
► Incorporates 105 codes "DQT" and 50 privacy codes "QT" programmable; Broadband (Wide) / Narrowband (Narrow) selectable; High power / low power selectable; Timer transmission "TOT" programmable
► Function Busy Channel Lock "BCL"; Level Threshold "Squelch" adjustable from 0 to 9; Transmit 1750 Tone; Channel frequency-report
CLICK HERE to download software, manual or programming tips.
Output Power: 7W(H)/5W(M)/1W(L)
Frequency Range: 400.00-520.00MHz

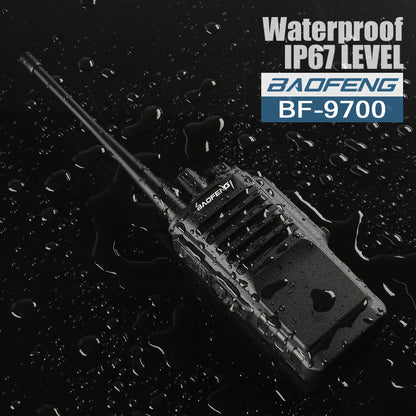

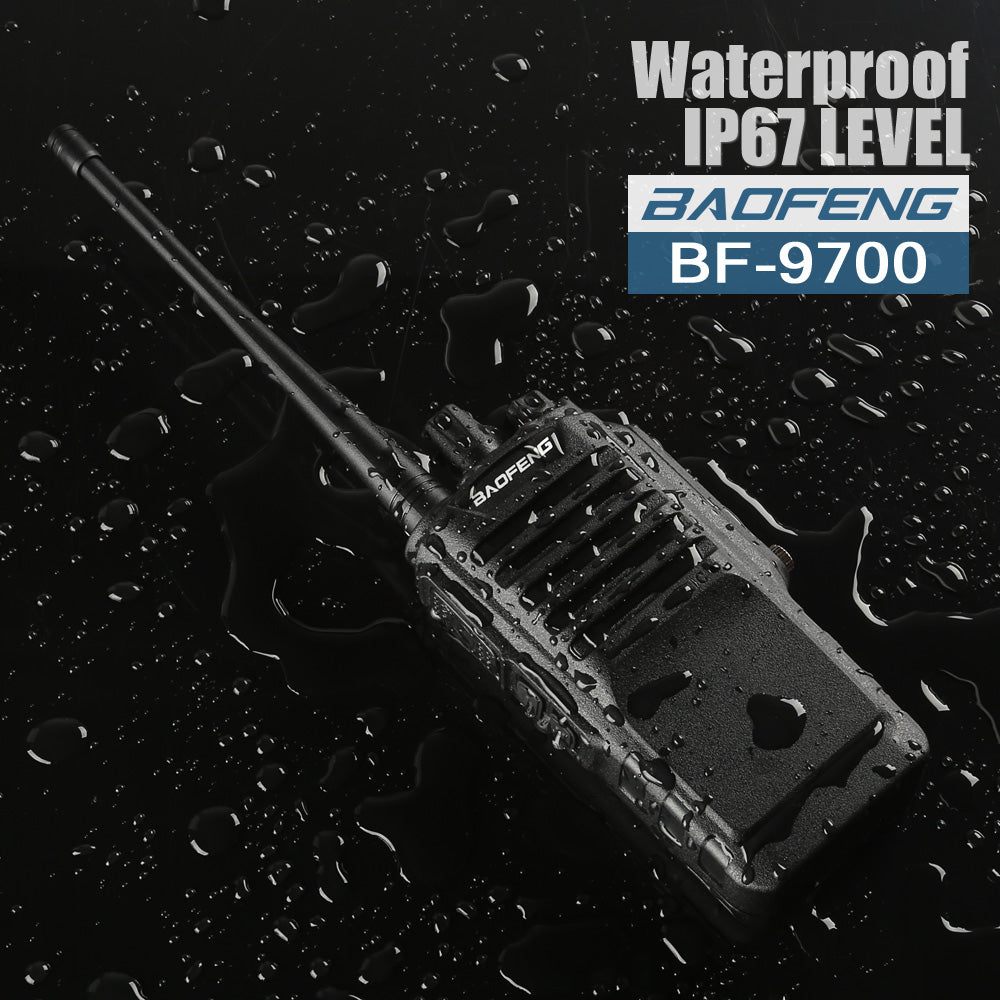

IP67 waterproof and dustproof
BF-9700 is a dustproof and waterproof two-way radio. After dropped into one meter underwater for 30 minutes, the radio still works very well. It ensures BF-9700's reliability in wet environments. No matter where you are, swimming pool or desert, you may enjoy with BF-9700!
What is IP67?
IP means Ingress Protection;
6: Dust Tight. No ingress of dust; complete protection against contact.
7: Immersion up to 1m. Ingress of water in harmful quantity shall not be possible when
the enclosure is immersed in water under defined conditions of pressure and time (up to 1m of submersion).
Waterproof Dustproof IP67
Incorporates 105 codes "DQT" and 50 privacy codes "QT" programmable
Broadband (Wide) / Narrowband (Narrow) selectable
High power / low selectable
Battery saving function "SAVE"
Timer transmission "TOT" programmable
Selecting the Scan Mode
Inspection, stun, kill and decoding
Distant urgency alarm, SOS function
Function Busy Channel Lock "BCL"
Level Threshold "Squelch" adjustable from 0 to 9
Transmit 1750 Tone
Frequency range: UHF 400-520 MHz 65MHz-108MHz (only commercial FM radio reception)
Memory channels: Up to 16 channels
Frequency stability: ±2.5ppm
Frequency step: 12.5/25 KHz
Antenna impedance: 50Ω
Operating temperature: -20℃ to +60℃
Supply voltage: Rechargeable lithium-ion mAh 7.4V/1800
Consumption in transmission: ≤1.5A
Maximum deviation: ≤±5KHz/≤±2.5KHz(W/N)
Spurious power: ≤7.5uW
Spurious emissions: ≤-65dB/≤-60dB
Signal to noise ratio: ≥-45dB/≥-40dB(W/N)
QT/DQT Frequency offset: 0.7±0.1KHz/0.4±0.1KHz(W/N)
Modulation sensitivity: 8-12mV
Weight: appr 252g

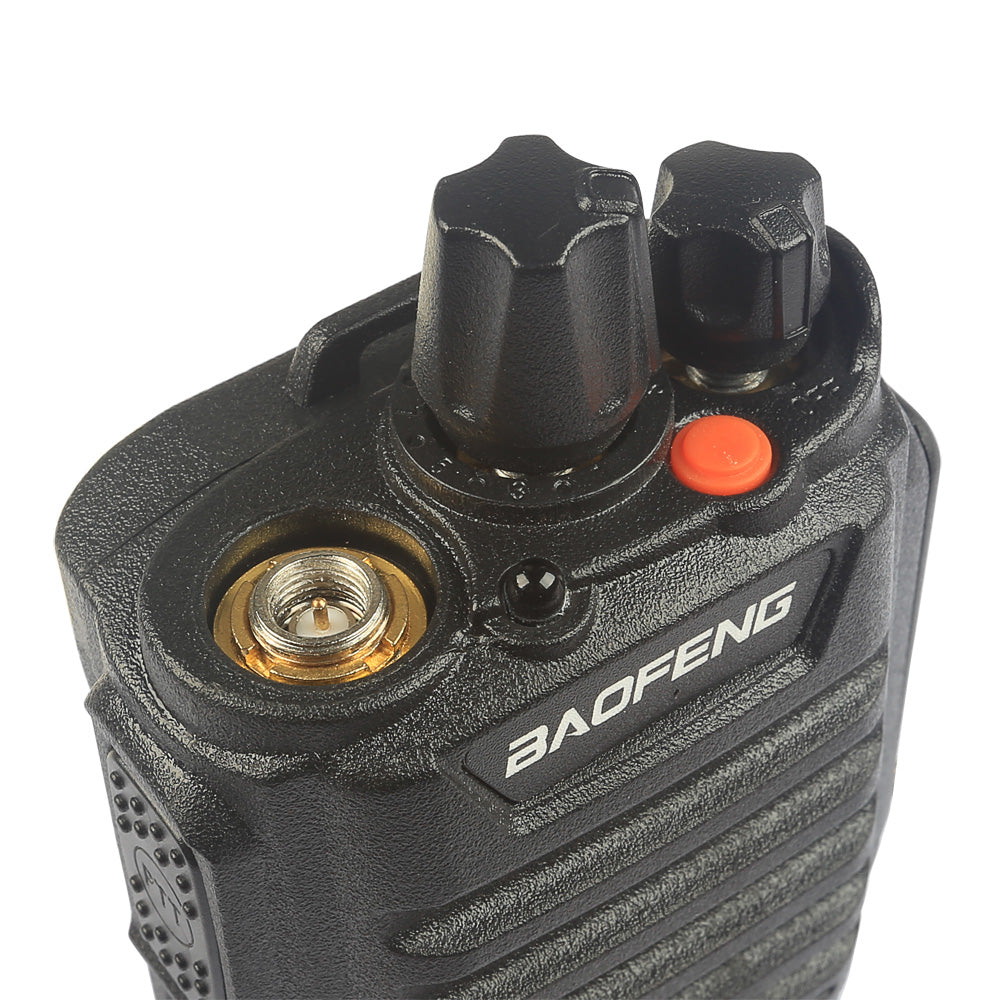

Antenna Type: Compatible with SMA-Female Antenna

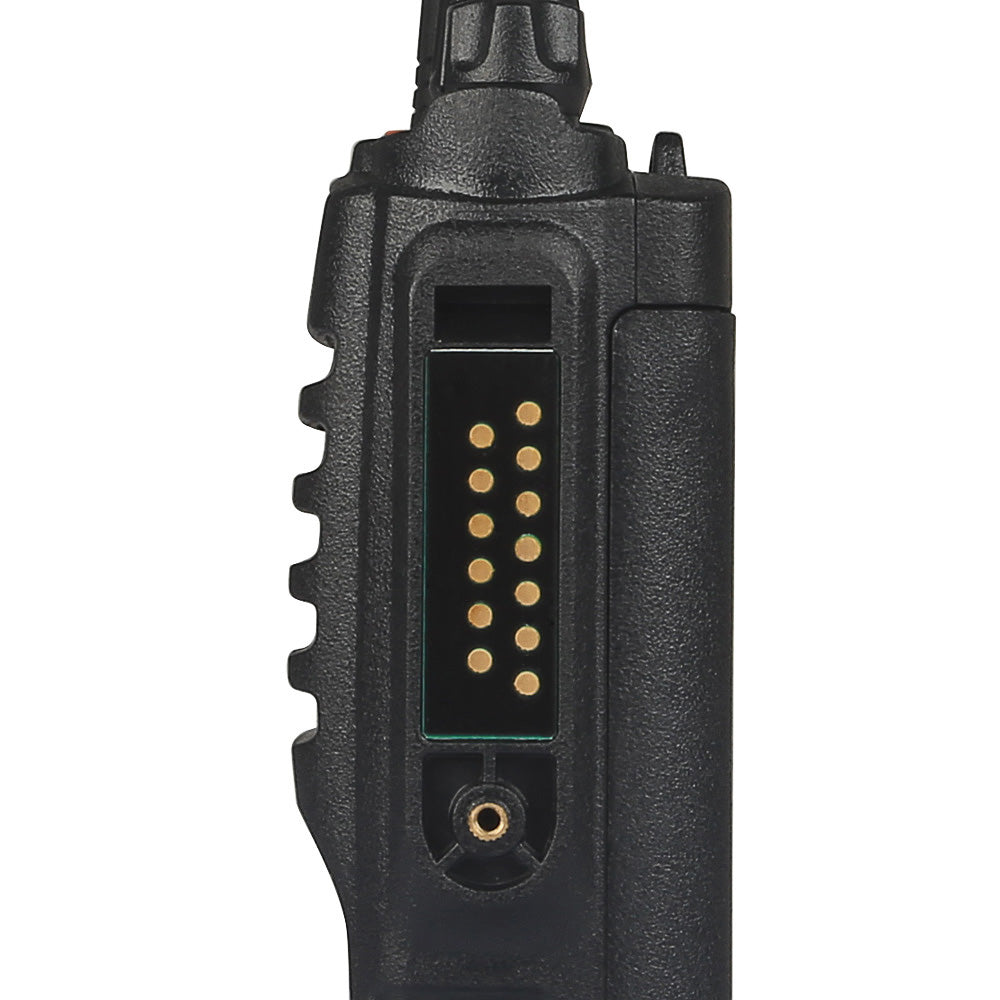

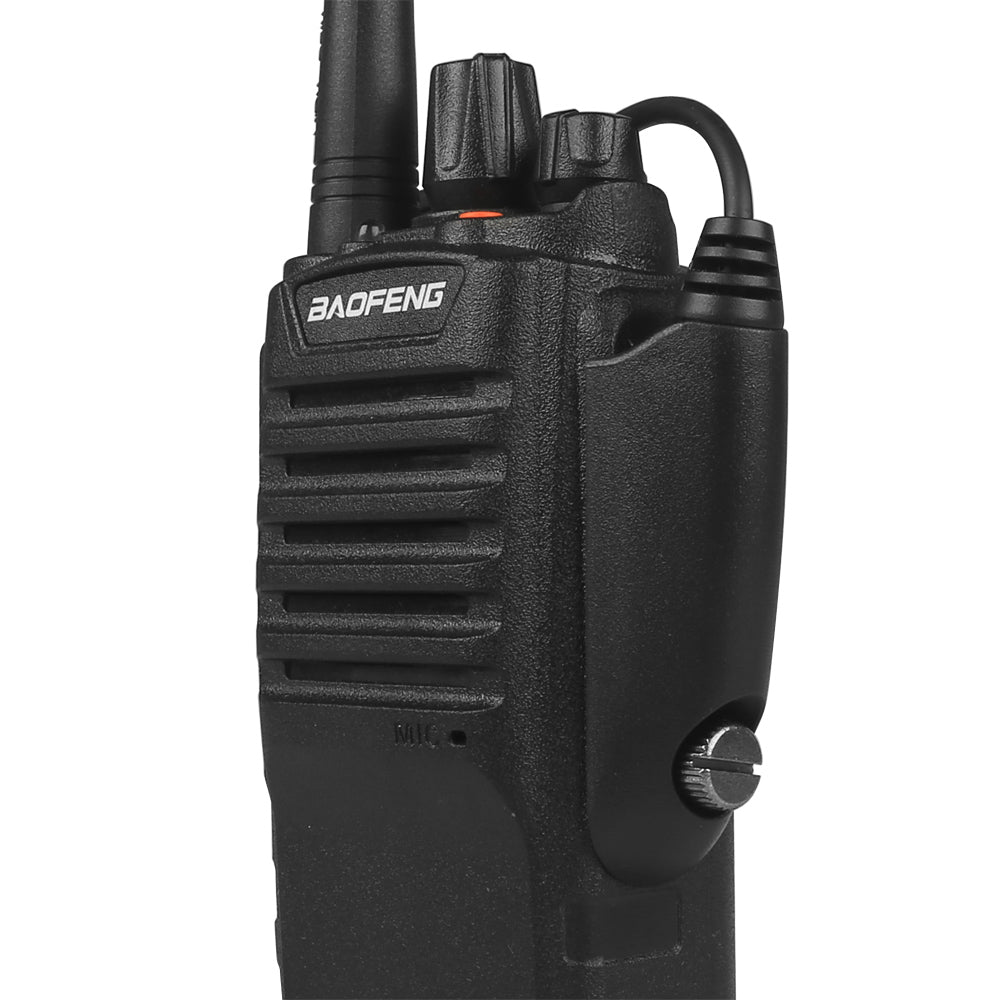

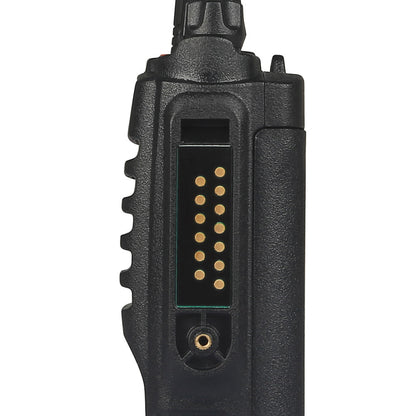

Earpiece & Programming Type: Special waterproof earpiece & cable

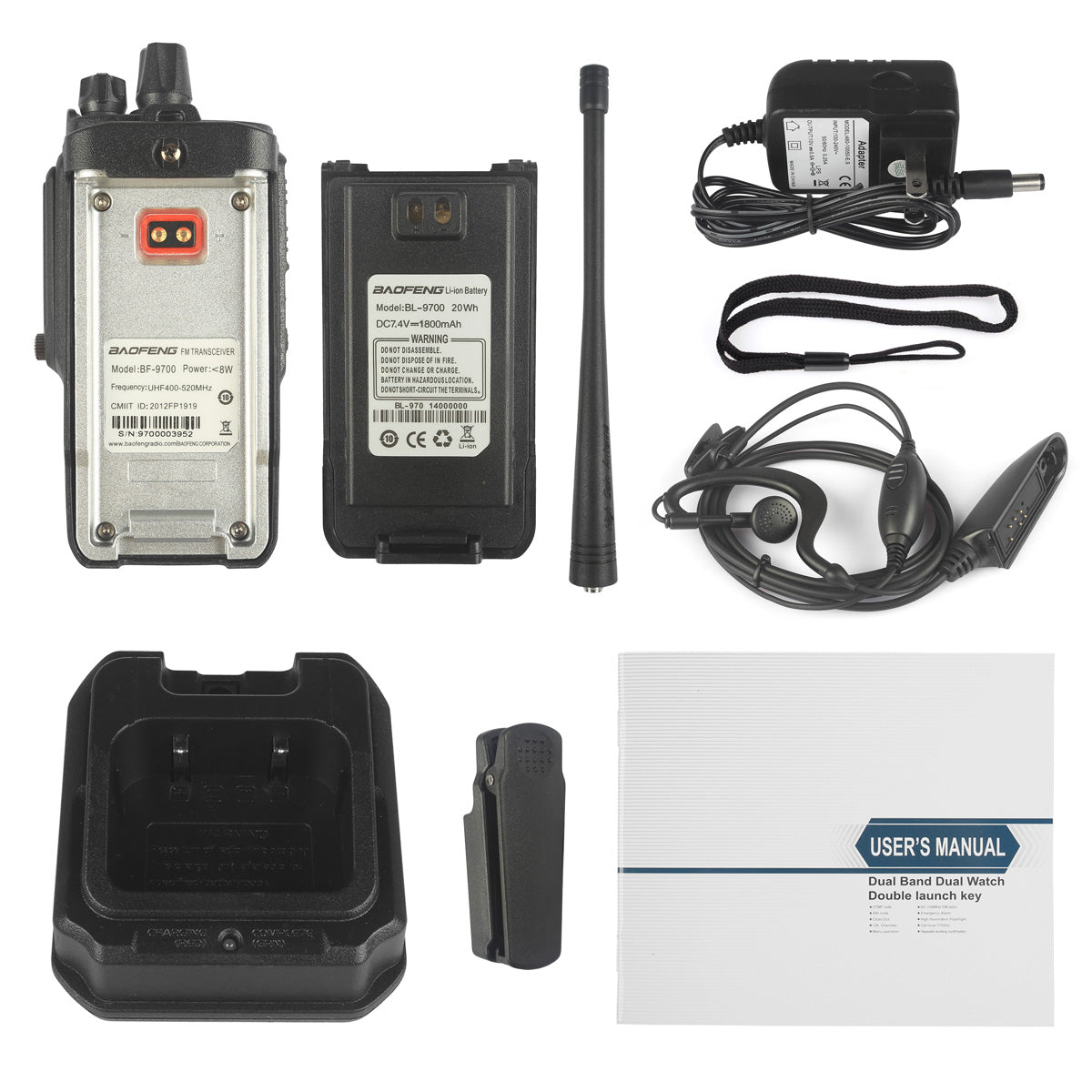

1 x Baofeng BF-9700 Waterpoof Radio
1 x Antenna

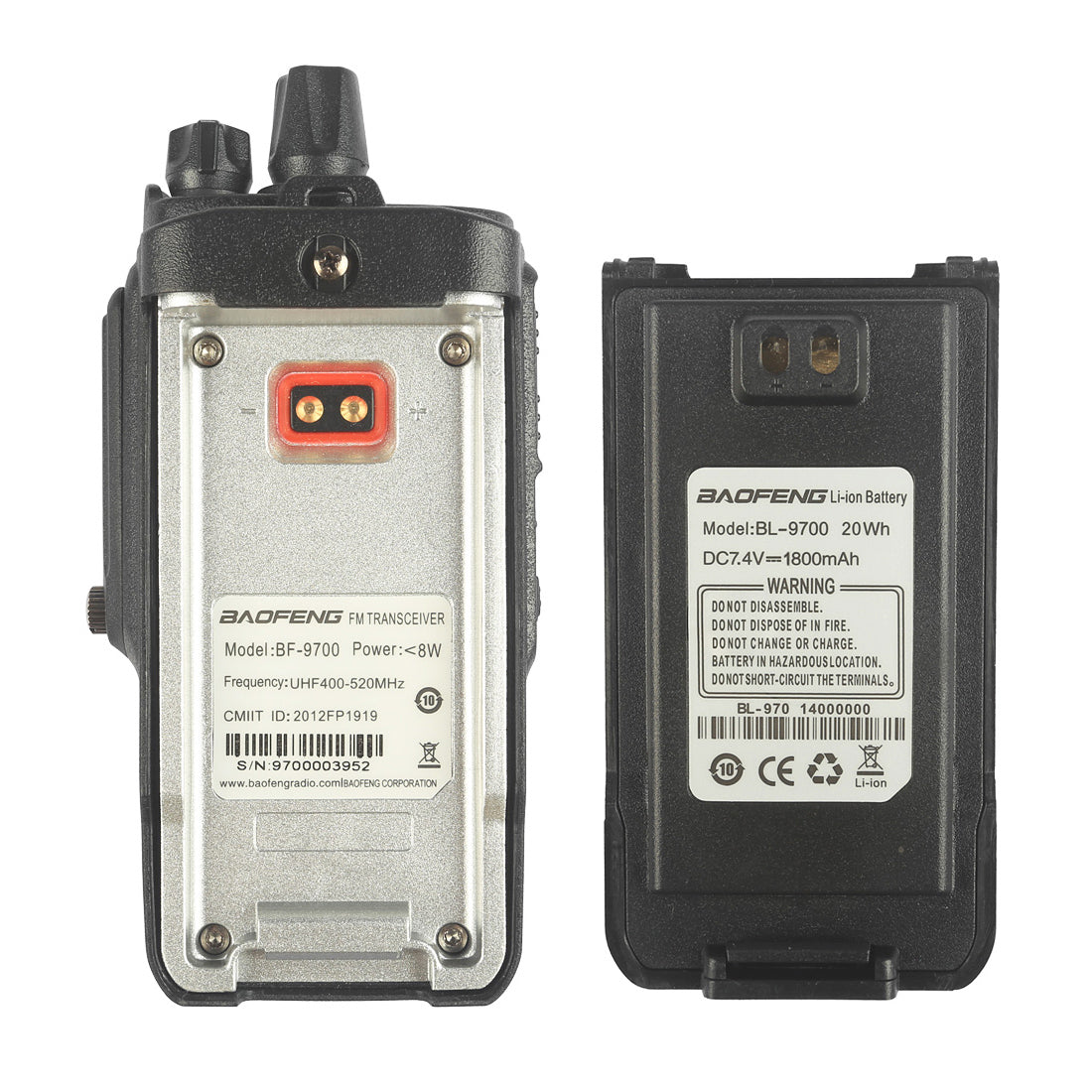

1 x 7.4V 1800mAh Li-ion Battery

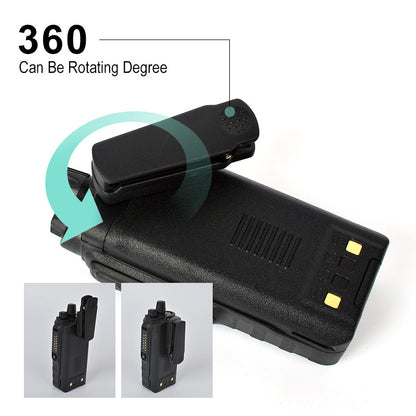

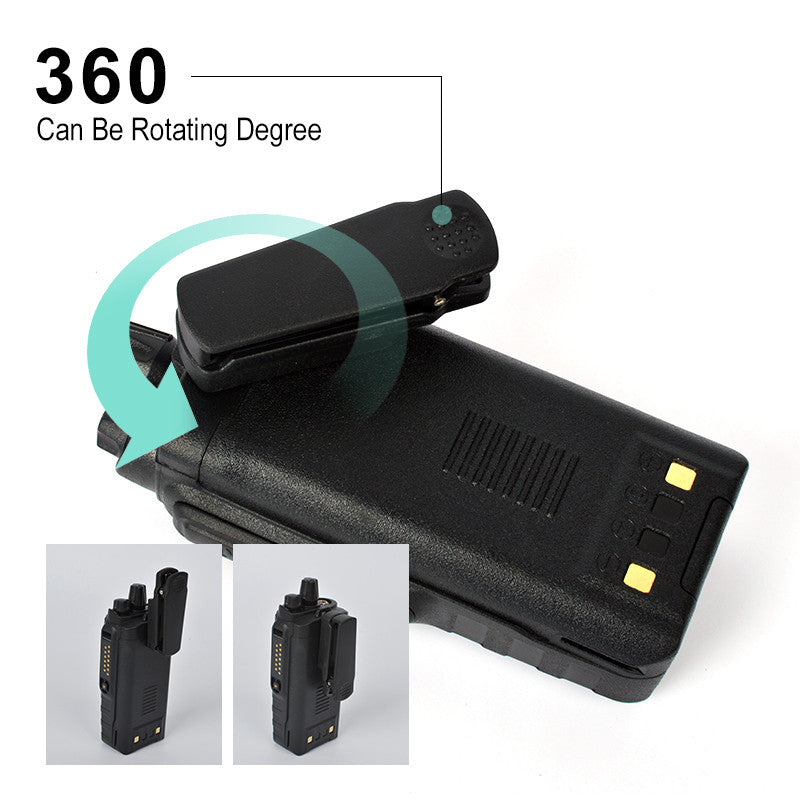

1 x Belt Clip
1 x Desktop Charger
1 x Adapter
1 x User Manual

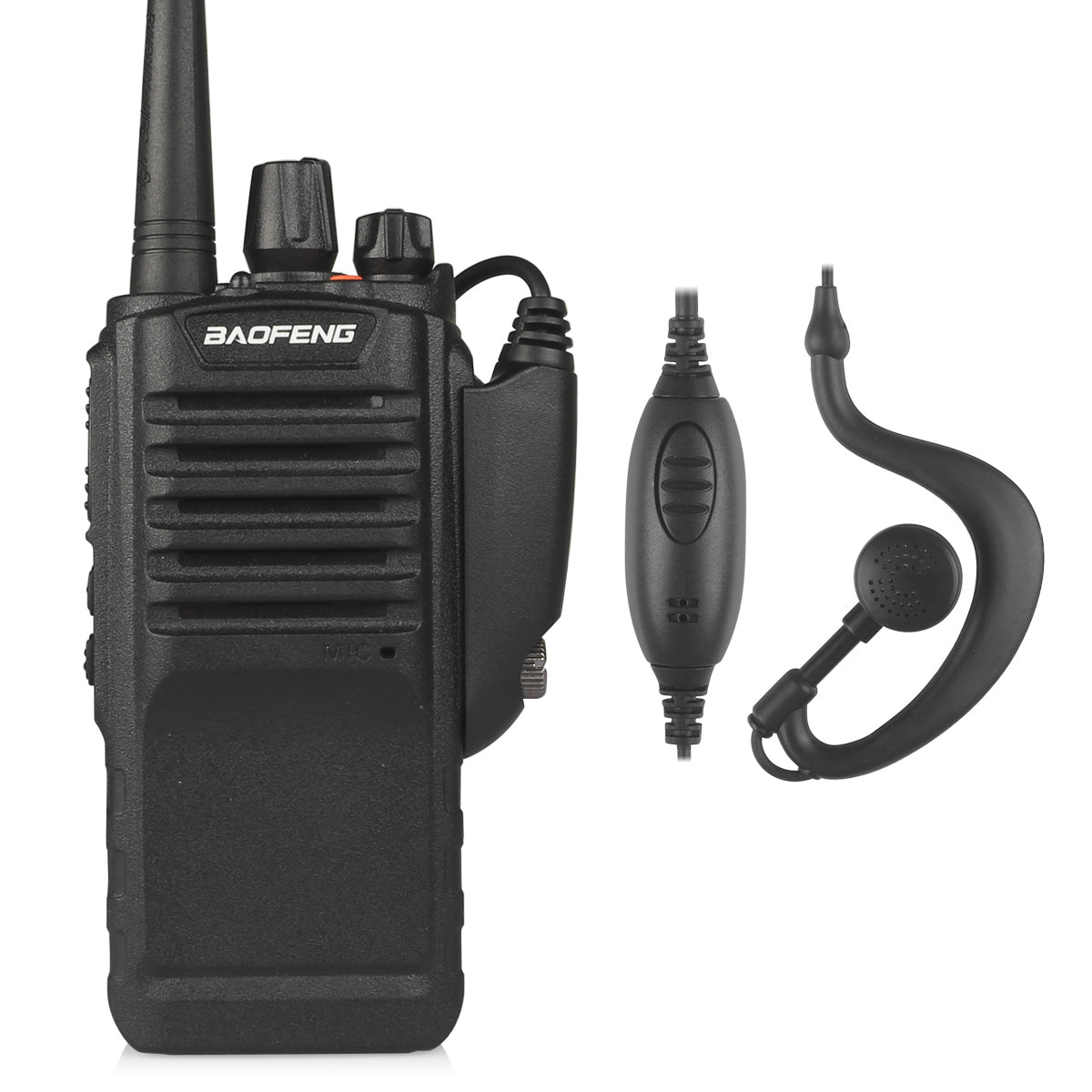

1 x Earphone Mic/Headset
1 x Hand Strap
1 Year and 6 months Manufacturer's Warranty.
• Radioddity's limited warranty applies to all BRAND NEW items sold by radioddity.com and other authorized dealers.
• This warranty is non-transferable and proof of purchase from us or an authorized dealer is required for warranty service.
What Does This Limited Warranty Cover?
We warrant that the Products are free from defects in materials and workmanship under normal use and use in accordance with the respective Product user manual, during the Warranty Period. Please refer to the Instructions inside each package for a description of proper use and care of the unit.
What Does This Limited Warranty Not Cover?
This limited warranty does not cover damages directly or indirectly arising or resulting from or during:
(1) accident, misuse, abuse, vandalism or acts of God (including lightning and other weather conditions)
(2) use with another product or other damage or loss suffered by the use or combination of any other item
(3) improper or inadequate maintenance
(4) repairs by an unauthorized service technician
(5) normal wear and tear
