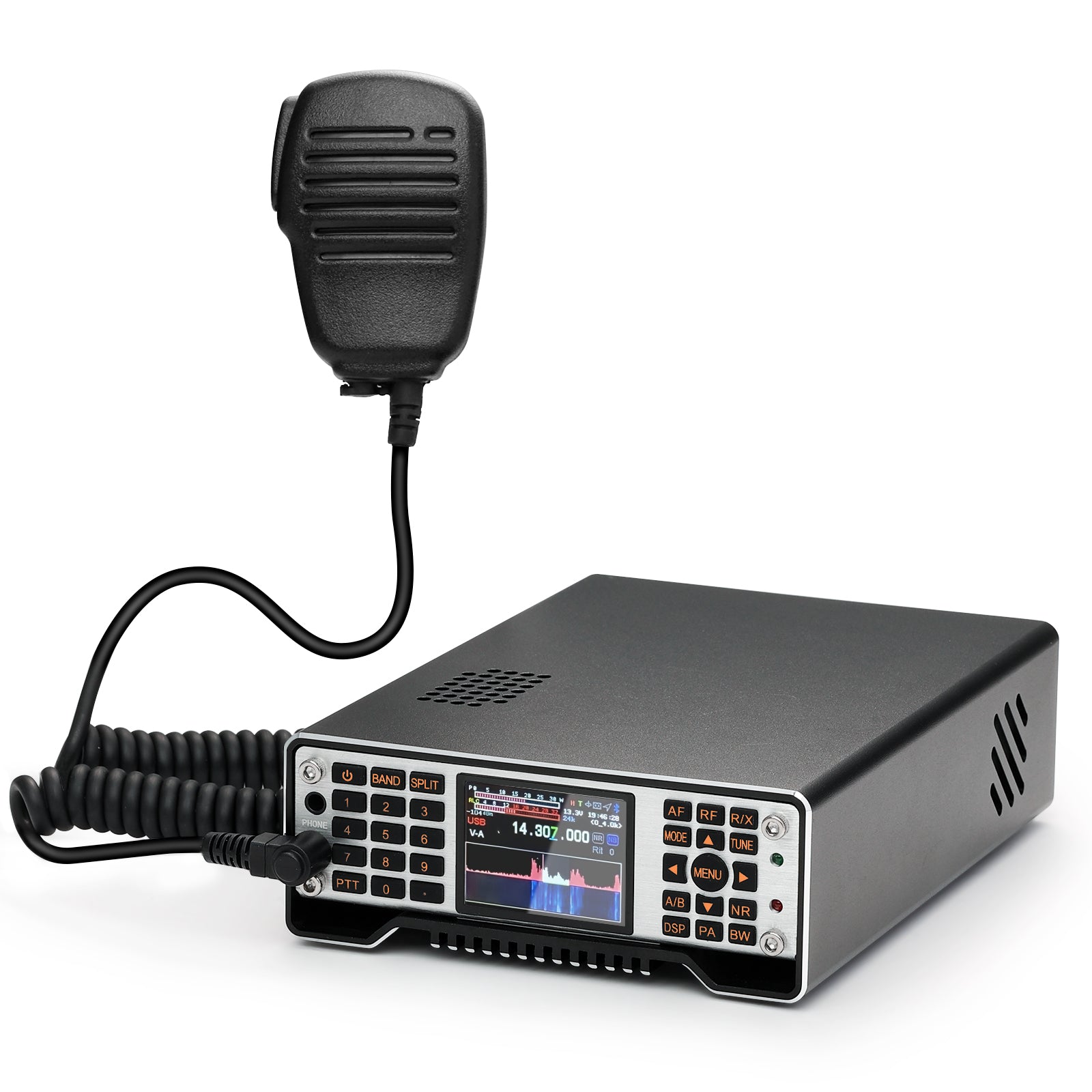

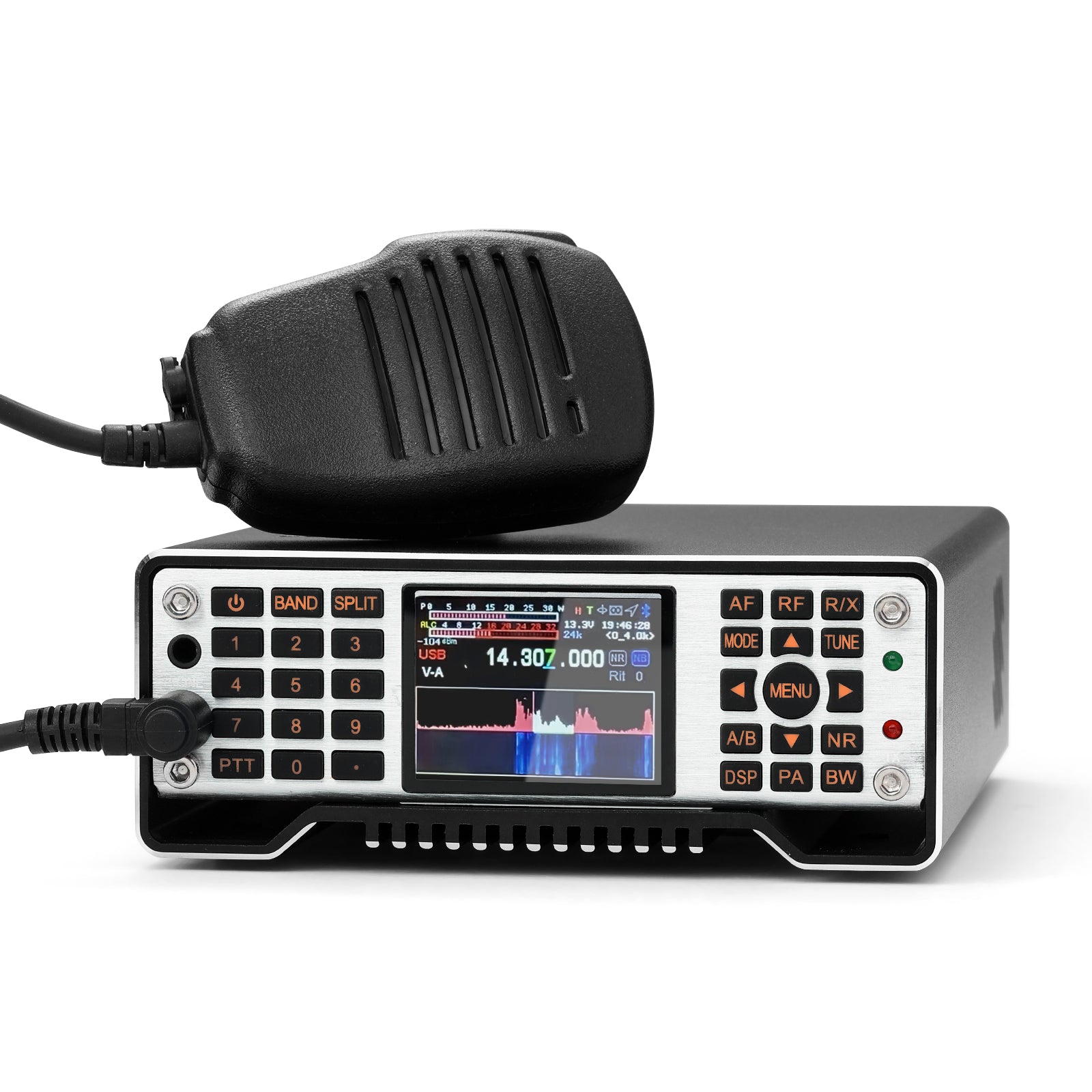

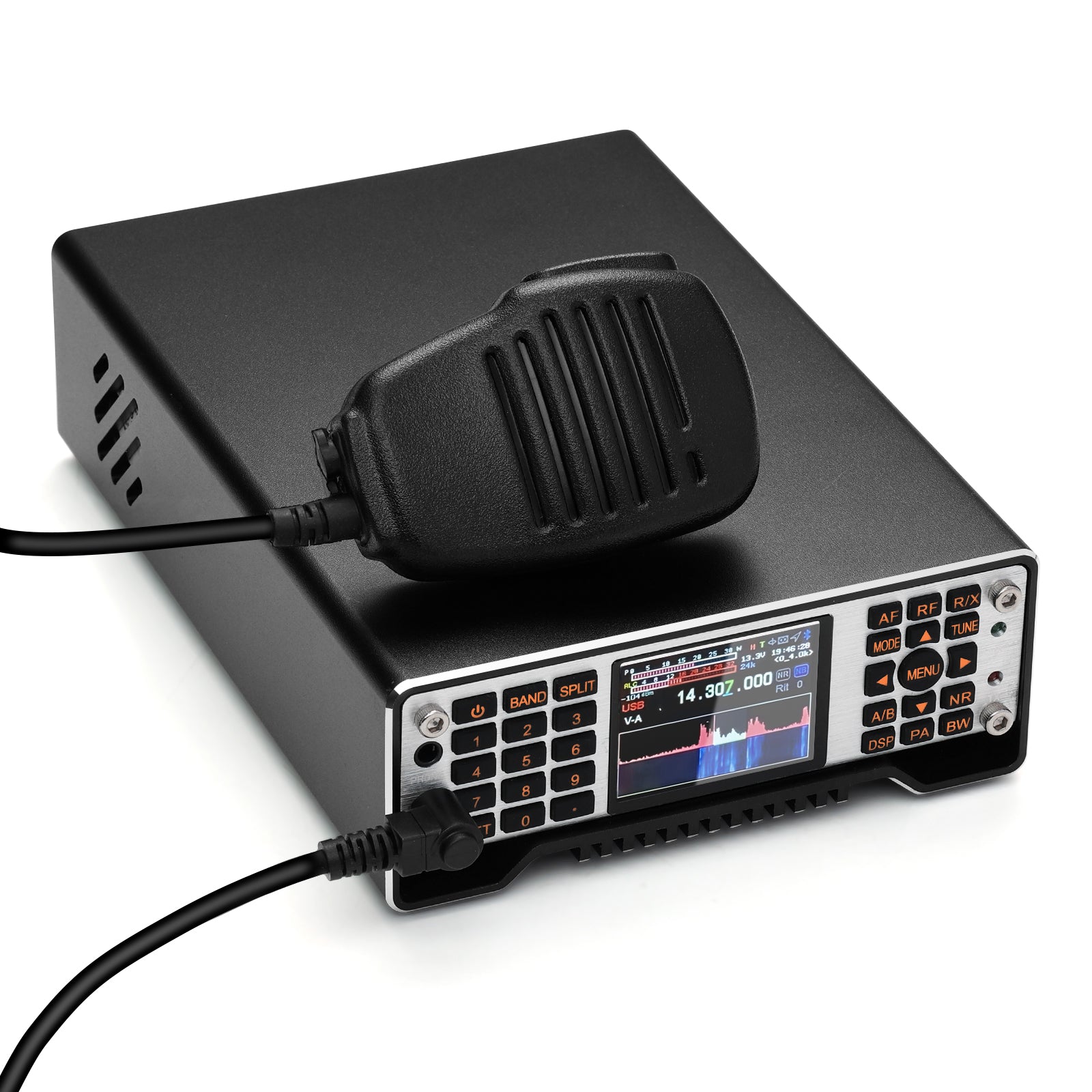

Radioddity QR20 SDR Radio | Full Band CW SSB RTTY AM FM DMR | 100kHz to 2GHz | Auto Antenna Tuner | Max 20W

Write a review
SKU: 715-HR-QR20
  • Regular price $699.00
  • Regular price $0.00 SAVE $-699.00
  • Will be in stock after


Only 0 left in stock


THE FIRST BATCH SOLD OUT IN 1 HOUR 45 MINUTES













 • Our first batch was sold out!!
 • First batch for pre-orders were only available in 30 units.
 • Pre-orders will be shipped out from June 30, 2021.
 • Optional modules like GPS, Digital Compass, DMR not included. Will be available soon.
 • For EU countries, we'll prepare the stock in the future.

WARRANTY NOTE: Radioddity provides a 1-year warranty on the QR20. As usual, if you modify the radio's hardware without the agreement of our support team, the warranty is void.


CLICK HERE to get the user manual.

CLICK HERE to submit your feedback.



Supports SSB, CW, RTTY, AM, FM, DMR
Full-band Full-Mode Operation
Dual-fan Cooling Design
Built-in Auto Antenna Tuner
Built-in Electronic Key Controller
Extra Functions Available
Built-in Battery with Two Way to Recharge
Built-in 3.5Ah Rechargeable Battery
PC Software & Smartphone APP Control

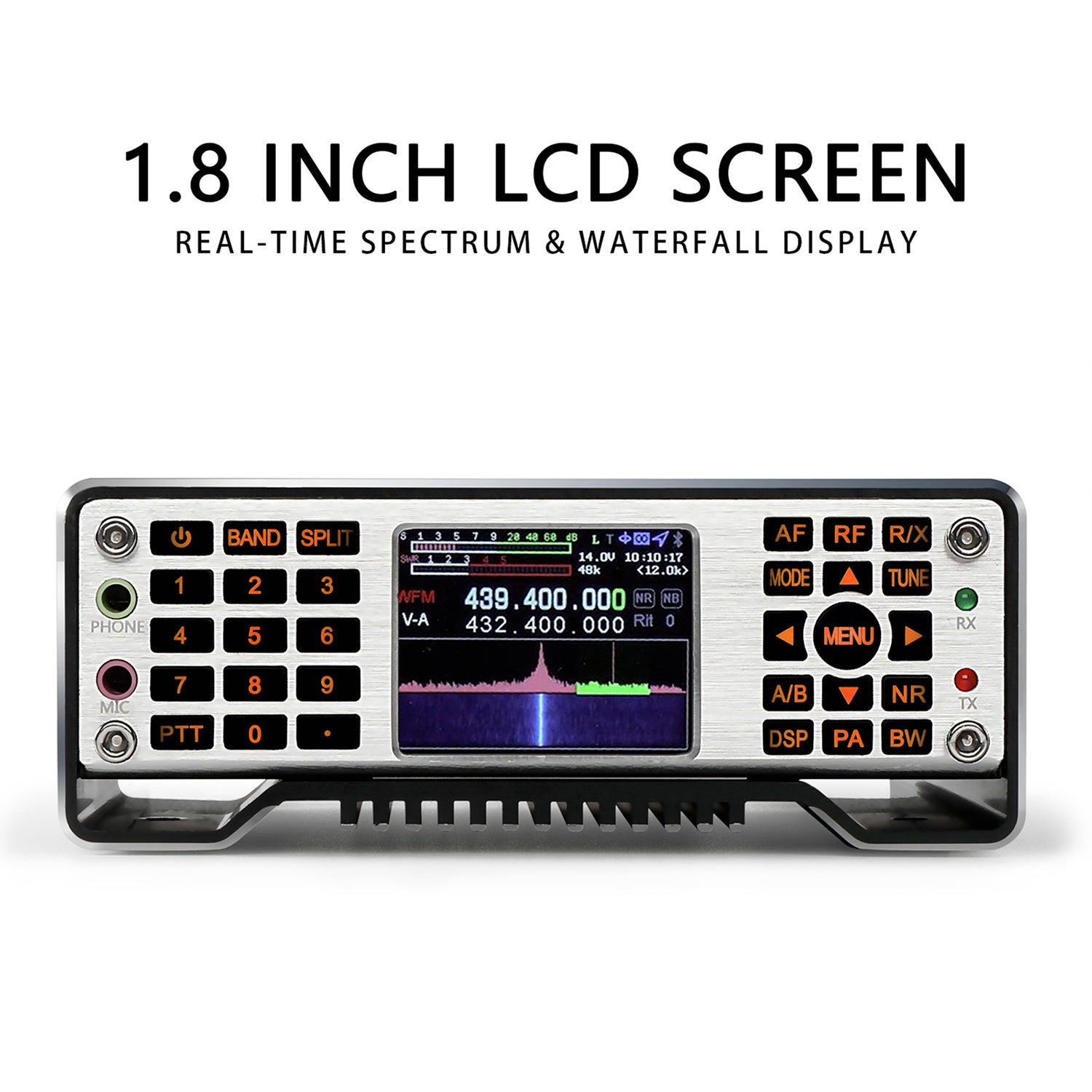

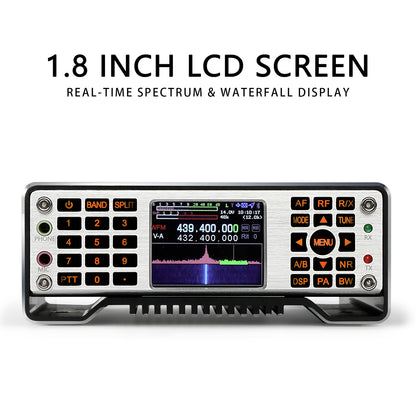

Real-time Spectrum & Waterfall Display
Built-in Sound Card with IQ and Sudio Output

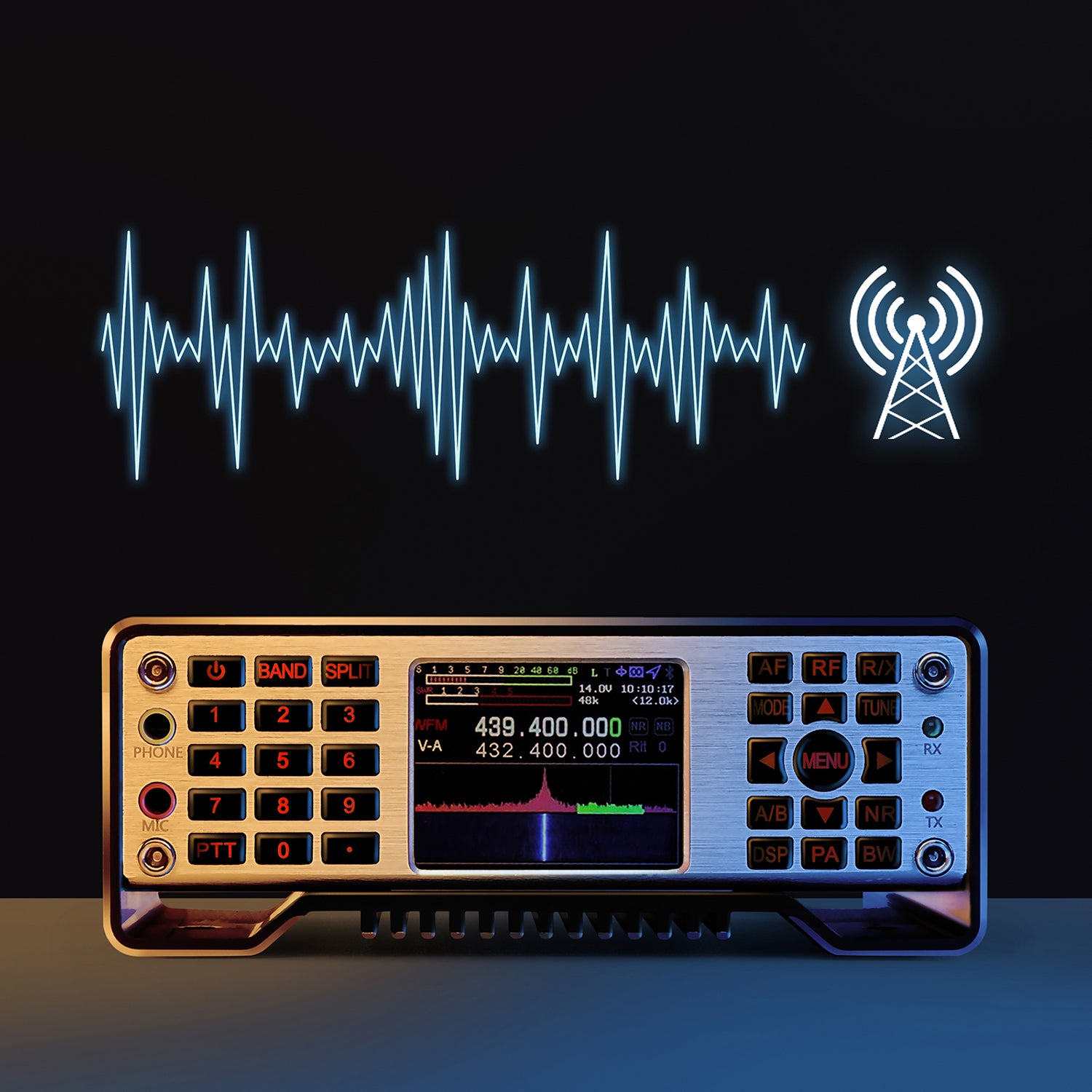

Radioddity QR20 is an ultra-portable full-frequency full-mode SDR radio supporting real-time spectrum & waterfall display.

FULL-BAND FULL-MODE OPERATION

The QR20 supports SSB, CW, RTTY, AM, FM, WFM (RX Only), DMR (optional) full-mode operation, with a reception from 100kHz to 2GHz as well as transmit from 160m to 70cm.

Built-in Battery with Two Way to Recharge

Comes with a built-in 3.5Ah rechargeable battery, QR20 provides you with 3-4 hours of outdoor operating time. You can charge it via both DC power supply and USB type-C cable.

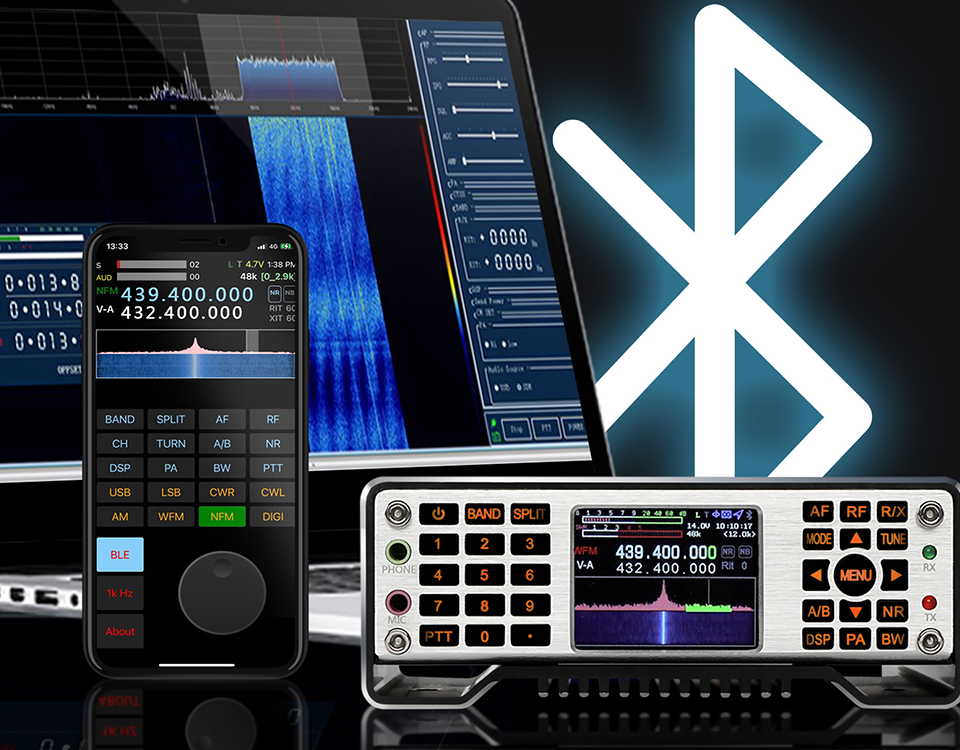

PC Software & Smartphone APP Control

Want to wirelessly operate your radio? In addition to normal PC software, the QR20 can be easily controlled by custom phone APP through Bluetooth. Android & iOS available.

Built-in Auto Antenna Tuner

The QR20 is equipped with a 160-6 meters high-speed automatic antenna tuner. Tune your antenna directly so that its impedance matches the transceiver and reduces SWR.

Extra Functions Available

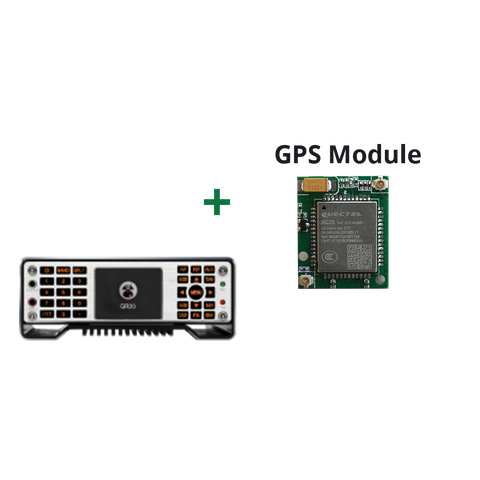

You can customize the QR20 with optional modules that add functions like GPS, digital compass and DMR mode.

Built-in Sound Card with IQ and Audio Output

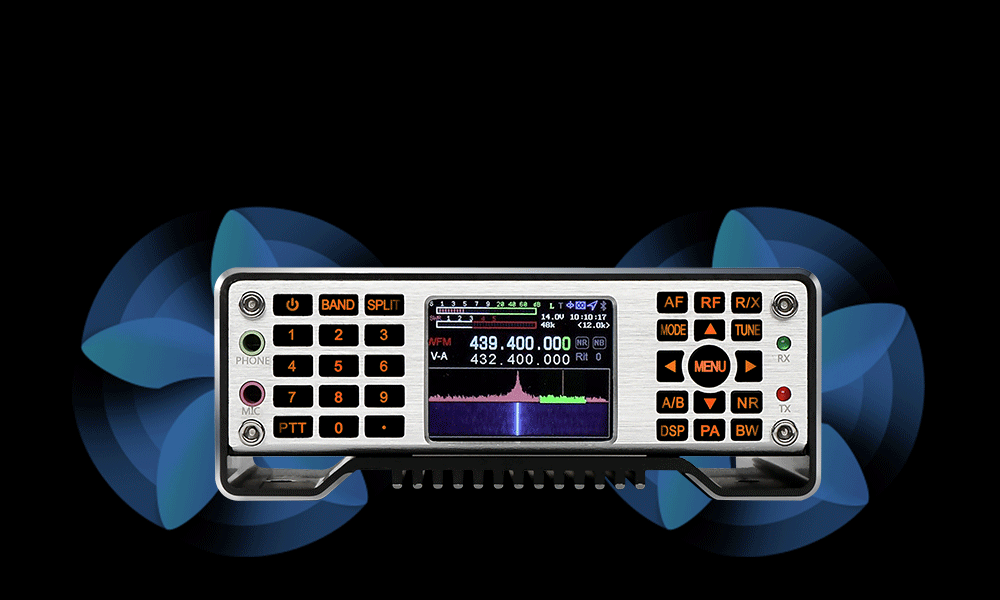

Dual-fan Cooling Design

Automatically adjust speed from 2000 to 8000 RPM according to different working conditions to achieve the auto temperature control function.

What's More

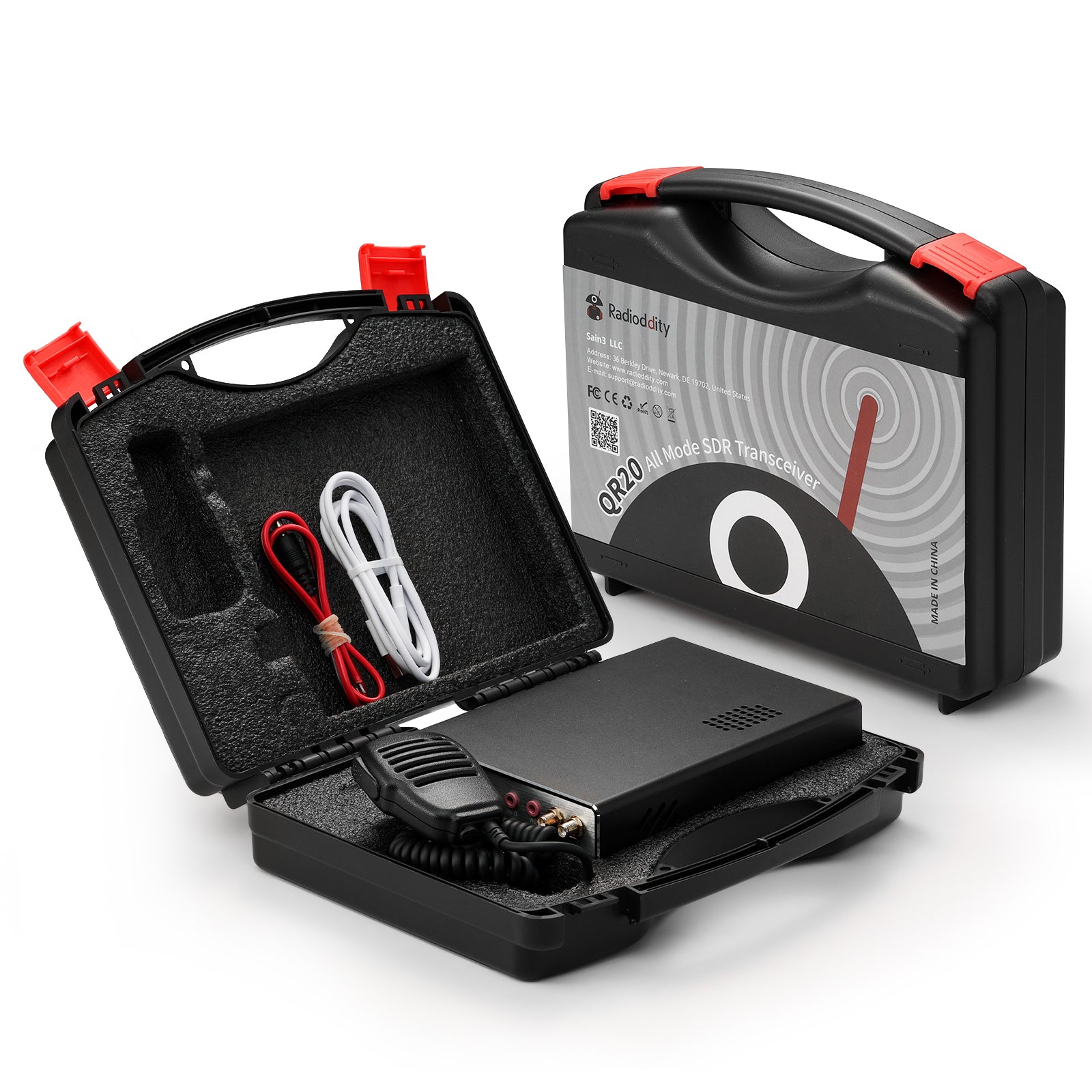

  • Come with protective carrying case

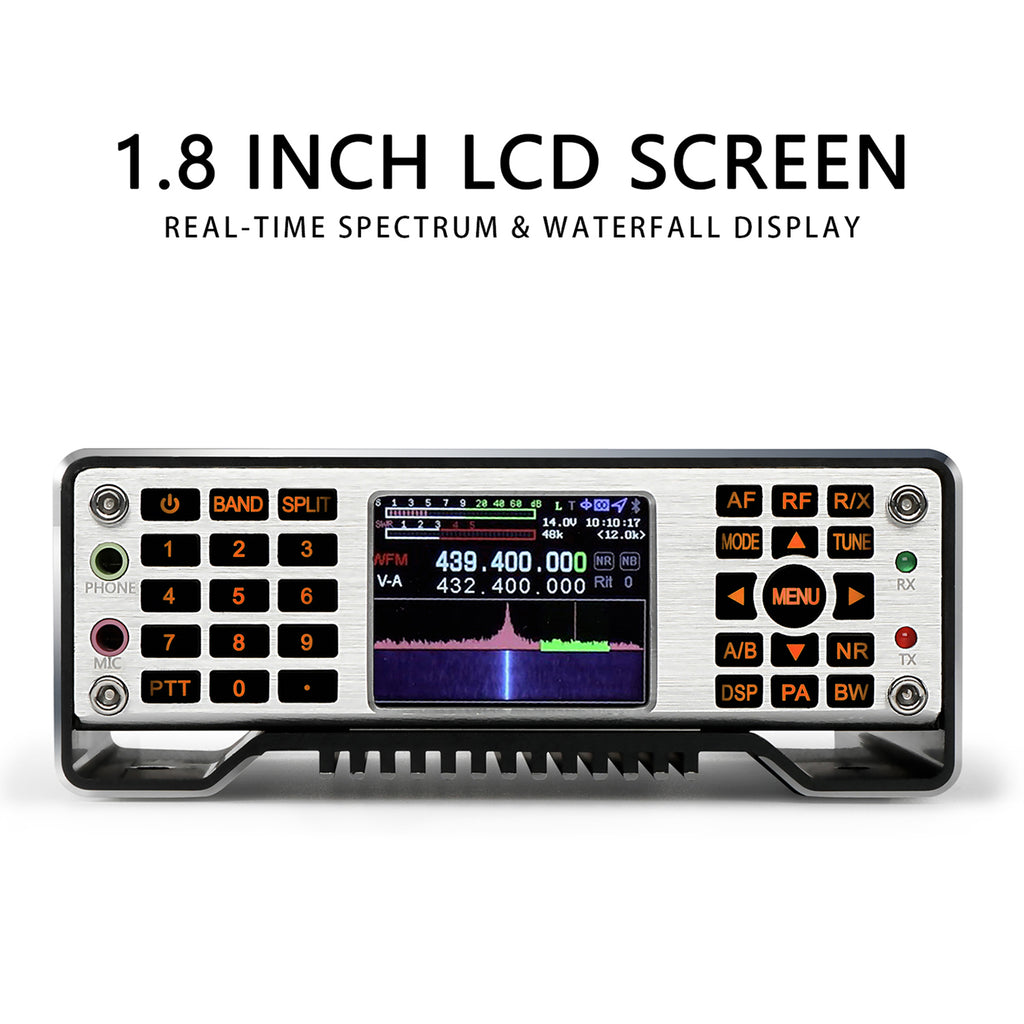

  • Real-time spectrum & waterfall display
  • Supports FT8 mode
  • DSP digital noise reduction
  • IF width and IF shift hardware
  • Built-in electronic key controller
  • Double conversion circuit structure
  • IF IQ signal output available
  • image

    Specifications

  • Architecture: SDR
  • Operating Mode: DMR (optional), SSB, CW, RTTY, AM, FM
  • Frequency Resolution: 1Hz
  • Transmit Frequency Range:1.800—2.000, 3.500—4.000, 5.351.5—5.366.5, 7.000— 7.300, 10.100—10.150, 14.000—14.350, 18.068— 18.168, 21—21.450, 24.890—24.990, 27, 28—29.7, 50—54, 134—170, 220—225 400—450MHZ
  • Reception Frequency Range: 100kHz—2GHz
  • Output Power:HF + 6m: SSB: (1-20W) CW: (0.1-20W)
    FM: (0.1-20W)
    AM: (1-5W)
    VHF: SSB / CW / FM / DMR (0.5-10W)
    UHF: SSB / CW / FM / DMR (0.5-5W)
  • Power Current:TX: 13.8V-6A (20W)
    RX: 13.8V-0.25A typical value, 0.5A (highest brightness, audio peak)
  • MORE DETAILS

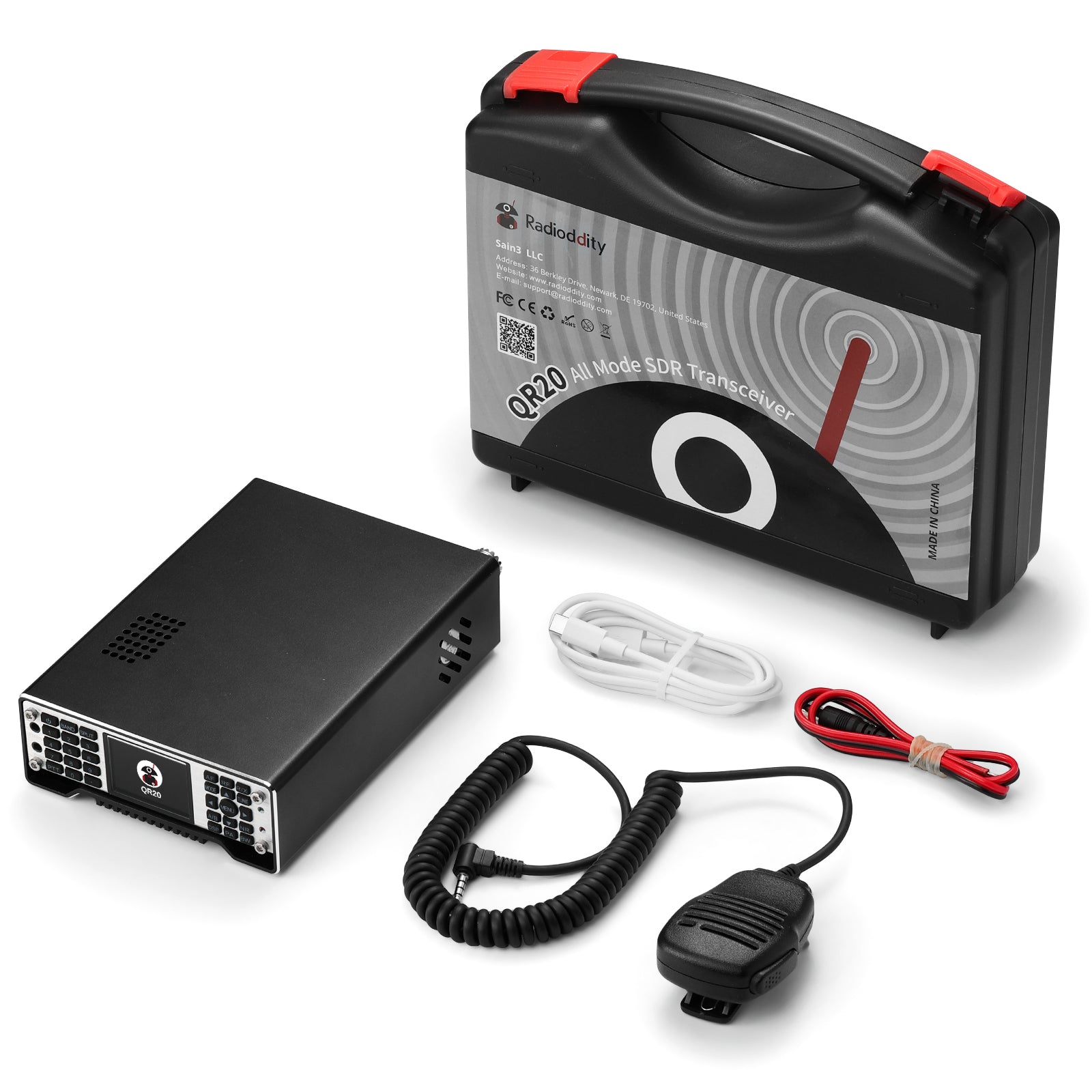

    What’s in the box?

  • 1 x QR20 Radio
  • 1 x External Wired Speaker Mic
  • 1 x DC Power Cable
  • 1 x USB Type-C Power & Data Cable
  • 1 x Protective Carrying Case
  • Transmitter Parameters
  • Transmitter ArchitectureSDR
  • Transmission modeDMR(optional), SSB, CW, RTTY, AM, FM, WFM (RX Only)
  • Frequency Resolution1Hz
  • Transmit Frequency Range1.800—2.000, 3.500—4.000, 5.351.5—5.366.5, 7.000— 7.300, 10.100—10.150, 14.000—14.350, 18.068— 18.168, 21—21.450, 24.890—24.990, 27, 28—29.7, 50—54, 134—170, 222—225, 400—450MHZ
  • Output PowerHF + 6m: SSB: (1-20W)
    CW: (0.1-20W)
    FM: (0.1-20W)
    AM: (1-5W)
    VHF: SSB / CW / FM / DMR (0.5-10W)
    UHF: SSB / CW / FM / DMR (0.5-5W)
  • Power CurrentTX: 13.8V-6A (20W)
    RX: 13.8V-0.25A typical value, 0.5A (highest brightness, audio peak)
  • Carrier Suppression<50db
  • Spurious Suppression1.8-54MHZ: ≥50db
    144-146MHZ: ≥60db
    430-440MHZ: ≥60db
  • Channels99 channels
  • Receiver Parameters
  • Receiver ArchitectureSDR
  • Reception ModeDMR (optional), SSB, CW, RTTY, AM, FM
  • Reception Frequency Range100kHz—2GHz *2
  • IF Bandwidth20kHz
  • Sensitivity *3SSB / CW: (BW: 2.4kHz @ 10dB S / N)
    0.18uV (1.8-54MHZ)
    0.25uV (144-146MHZ)
    0.25uV (430-440MHZ)
    AM: (BW: 6kHz @ 10dB S / N)
    15uV (0.3-1.8MHZ)
    2uV (1.8-54MHZ)
    2uV (144-146MHZ)
    2uV (430-440MHZ)
    FM: (BW: 15kHz @ 12dB S / N)
    0.5uV (28.0-29.7MHZ)
    0.25uV (50-54MHZ)
    0.3uV (144-500MHZ)
    0.5uV (430-440MHZ)
  • Intermediate Frequency Suppression≥70db
  • Image reject Suppression≥80db
  • Audio Output Power2W (10% distortion rate, 4Ω Load, 3KHZ)
  • Antenna Tuner Parameters
  • Tuning frequency Range1.8—54MHz
  • Tuning Impedance Range16.7Ω–150Ω Unbalanced (standing wave ratio is better than 1: 3)
  • Tuning AccuracyVSWR: 1: 1.5 or less
  • Tuning Time2-5S (whole section 10 seconds)
  • Tuning ModeAutomatic
  • Spectral Parameters
  • Spectral Bandwidth48K radio frequency spectrum FFT
  • Conventional Parameters

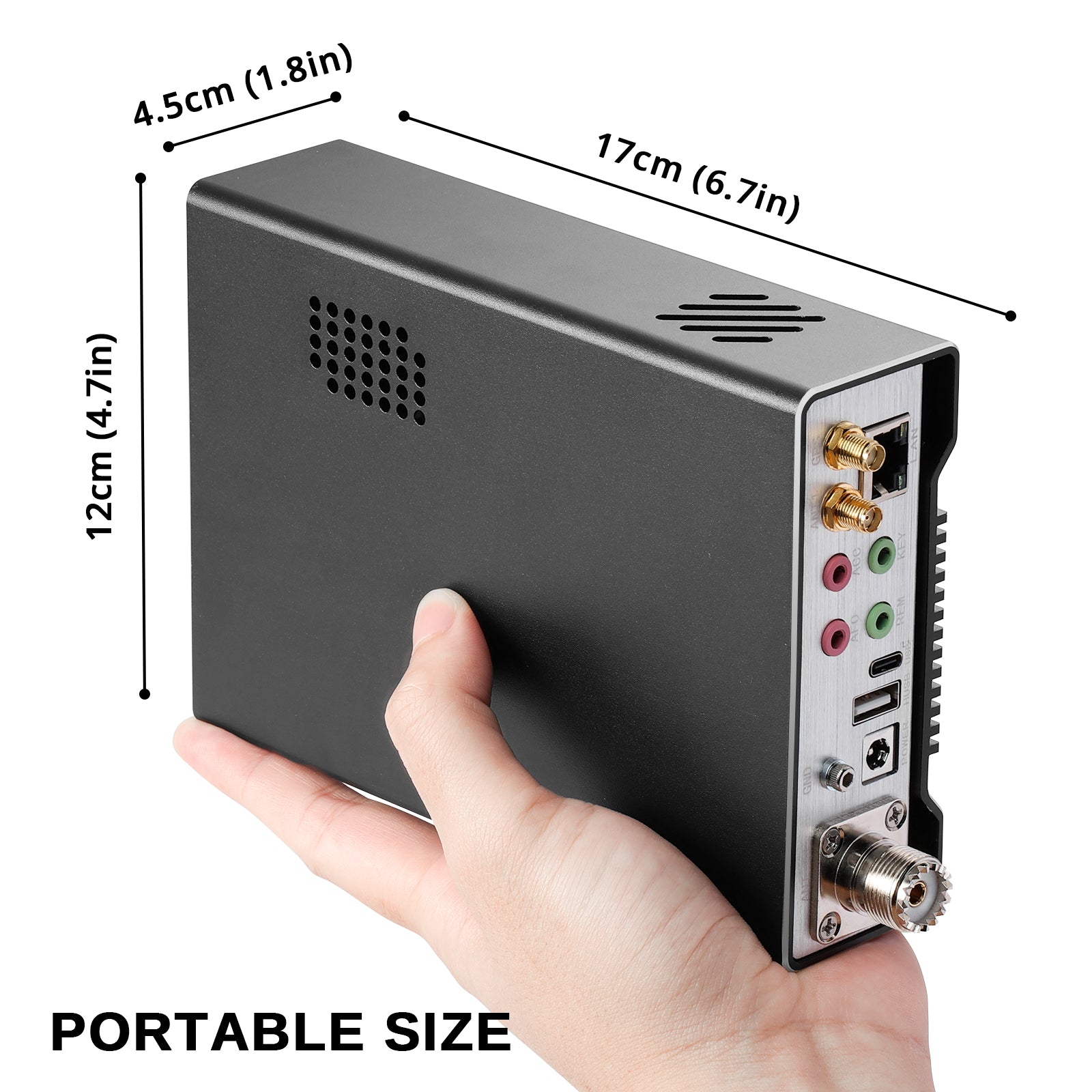

  • Size170X120X45mm (excluding projections)
  • Weight<2KG
  • Voltage RangeRX:5-32V
    TX: 5- 12V transmit power limit
    12-18V full power output
    18-32V transmit power limit

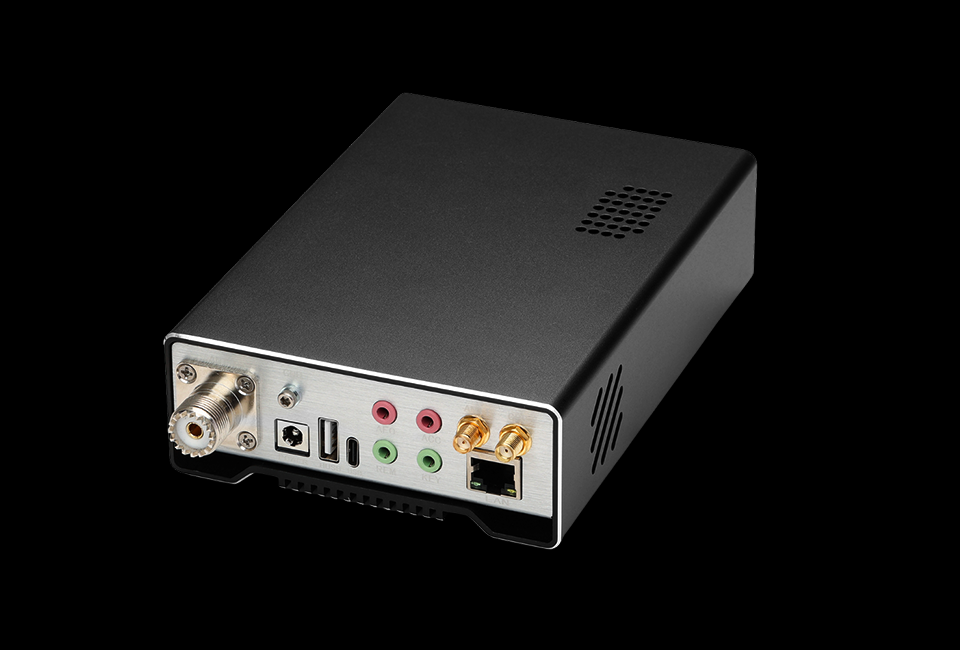

  • Antenna InterfaceM / PL socket
  • Note *1 : Frequency range can vary according to different countries or regions, the actual frequency by local legal provisions.

    Note *2 : Data retention.

    Note *3 : To be calibrated. The final interpretation reserved to manufacturers.
