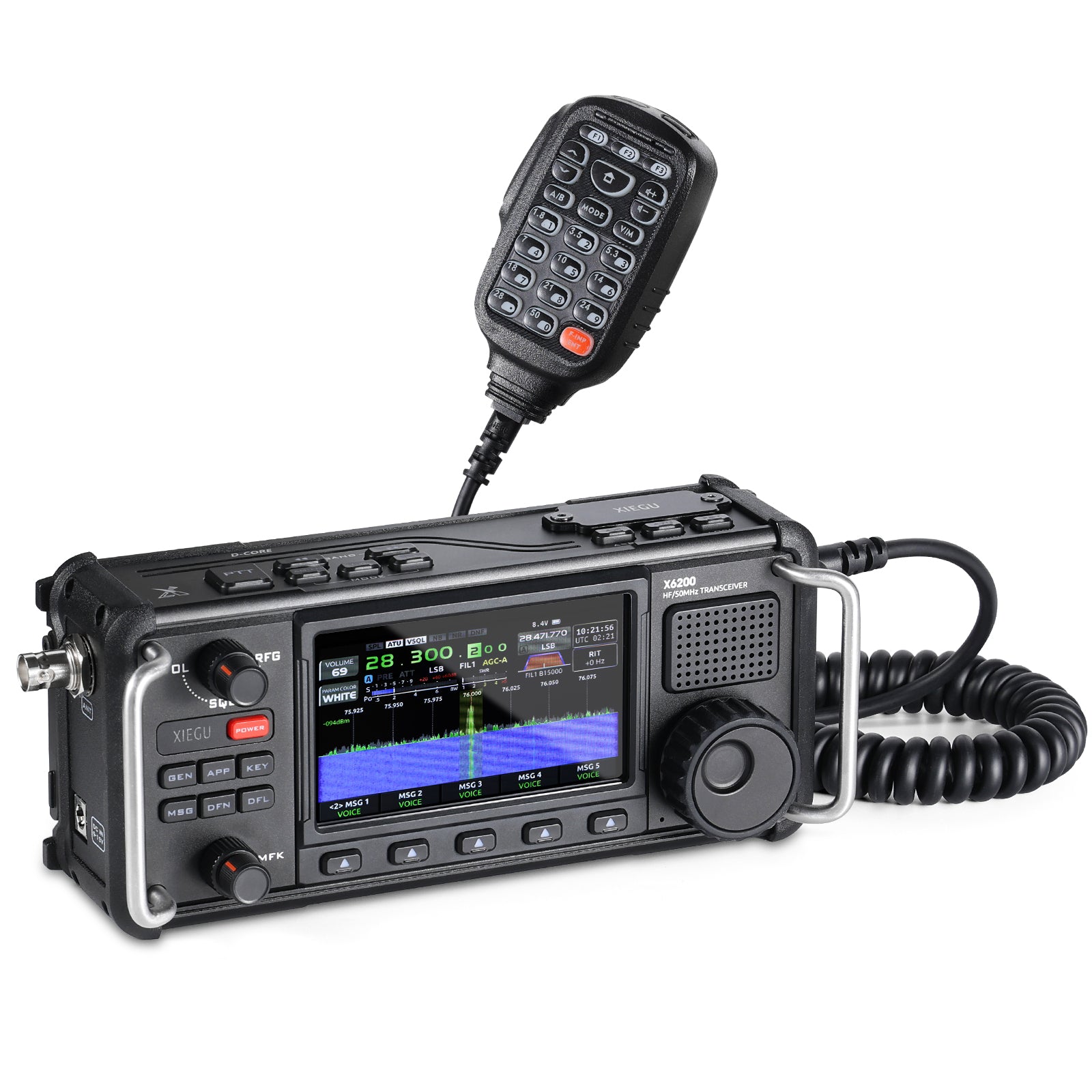

Xiegu X6200 - A new generation flagship ultra-portable transceiver that uses a high-performance DRFS platform architecture and offers a convenient user experience for amateur radio enthusiasts.
It has a 4-inch color screen, a built-in battery pack, an automatic antenna tuner, a microphone, and a recorder. It also supports various SDR features, such as digital filters, noise reduction, pulse interference elimination, and spectrum/waterfall display. It has two USB interfaces, an ACC interface, a 3.5mmKEY interface, and an S/P interface. It has two external expansion component slots for additional applications and peripherals.
Highlights

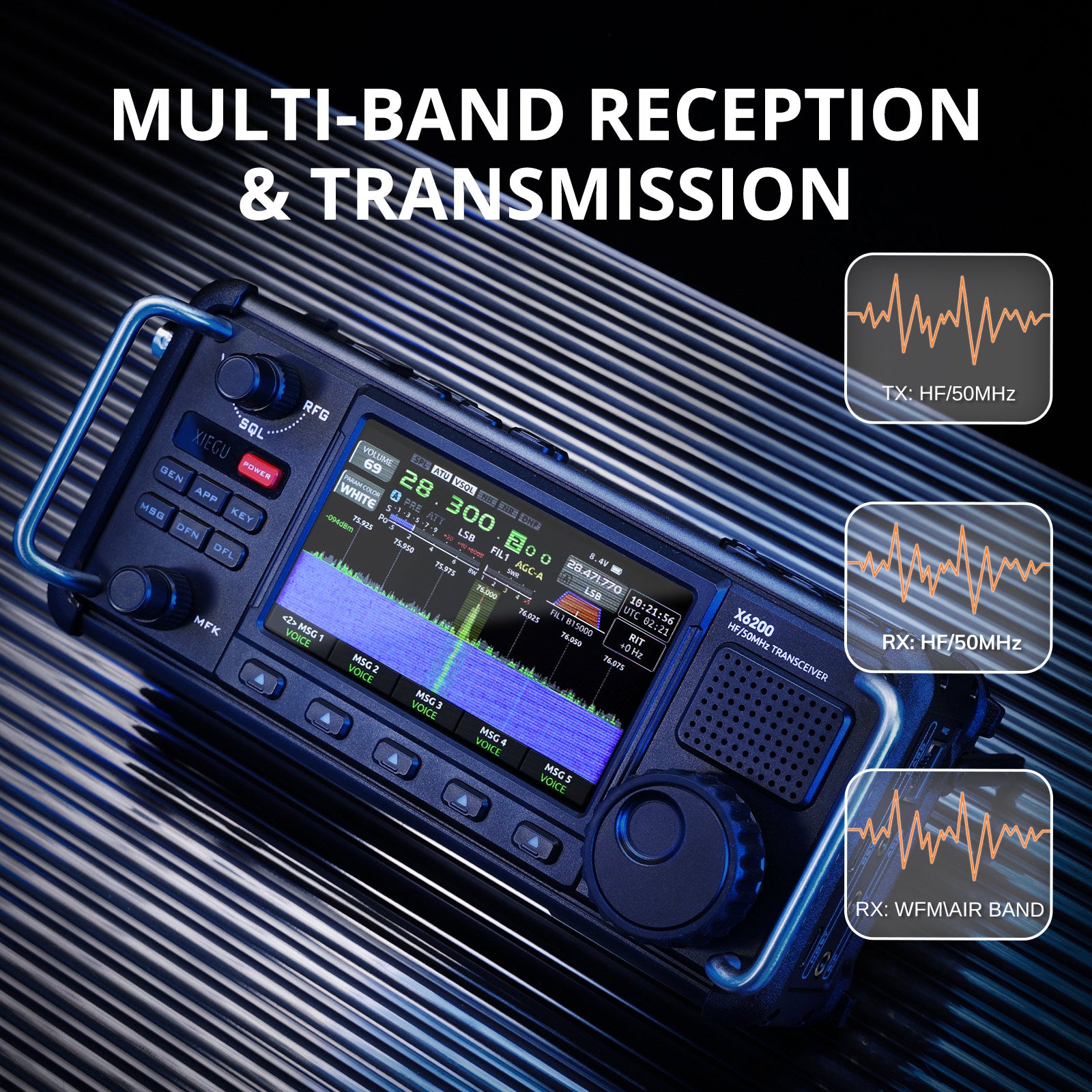

- HF/50MHz all-mode
- Detachable battery pack

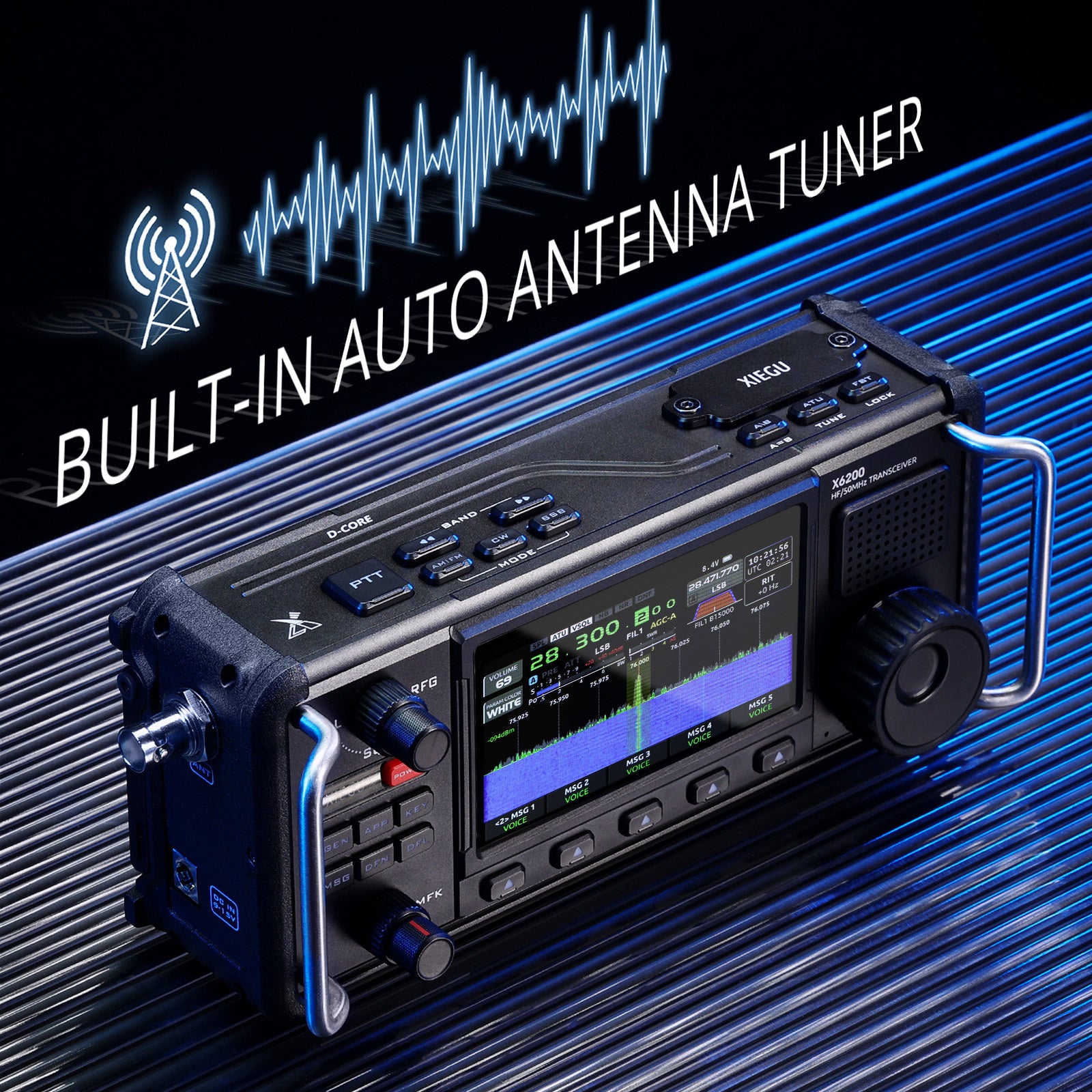

- Built-in efficient automatic antenna tuner
- Integrated standing wave scanner and voice pager
- Integrated modem, preset message, CW automatic call

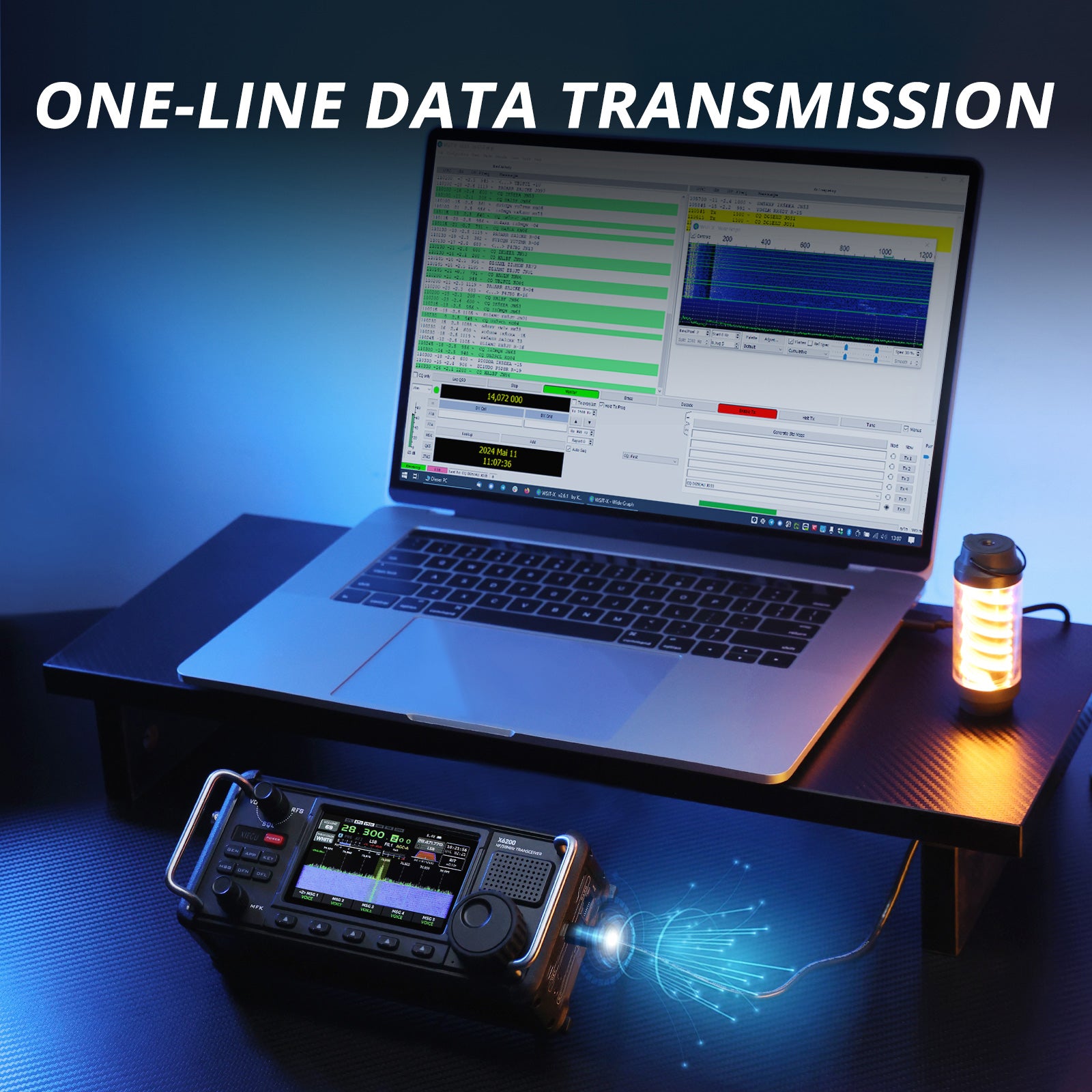

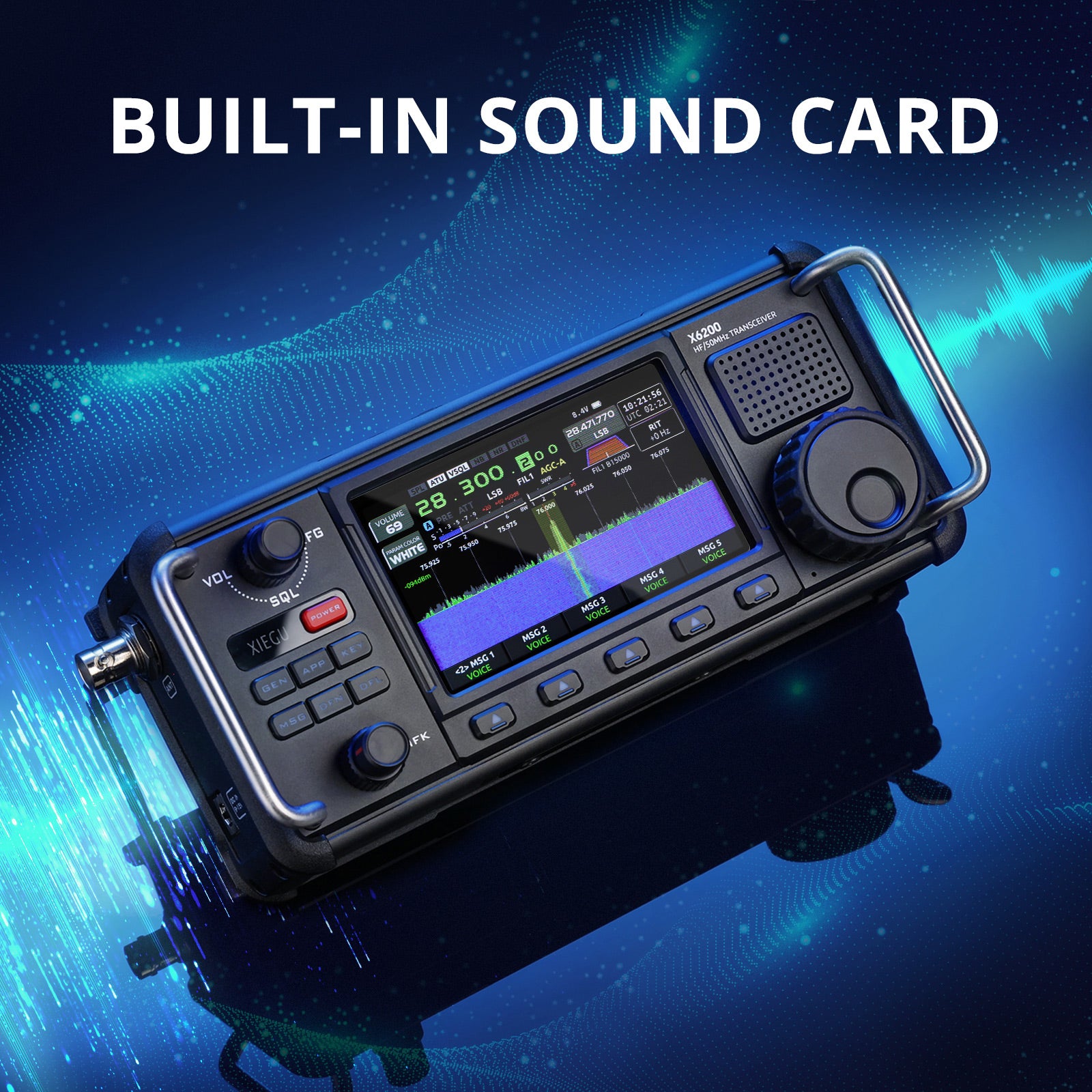

- Integrated USB line control/transmission, built-in sound card

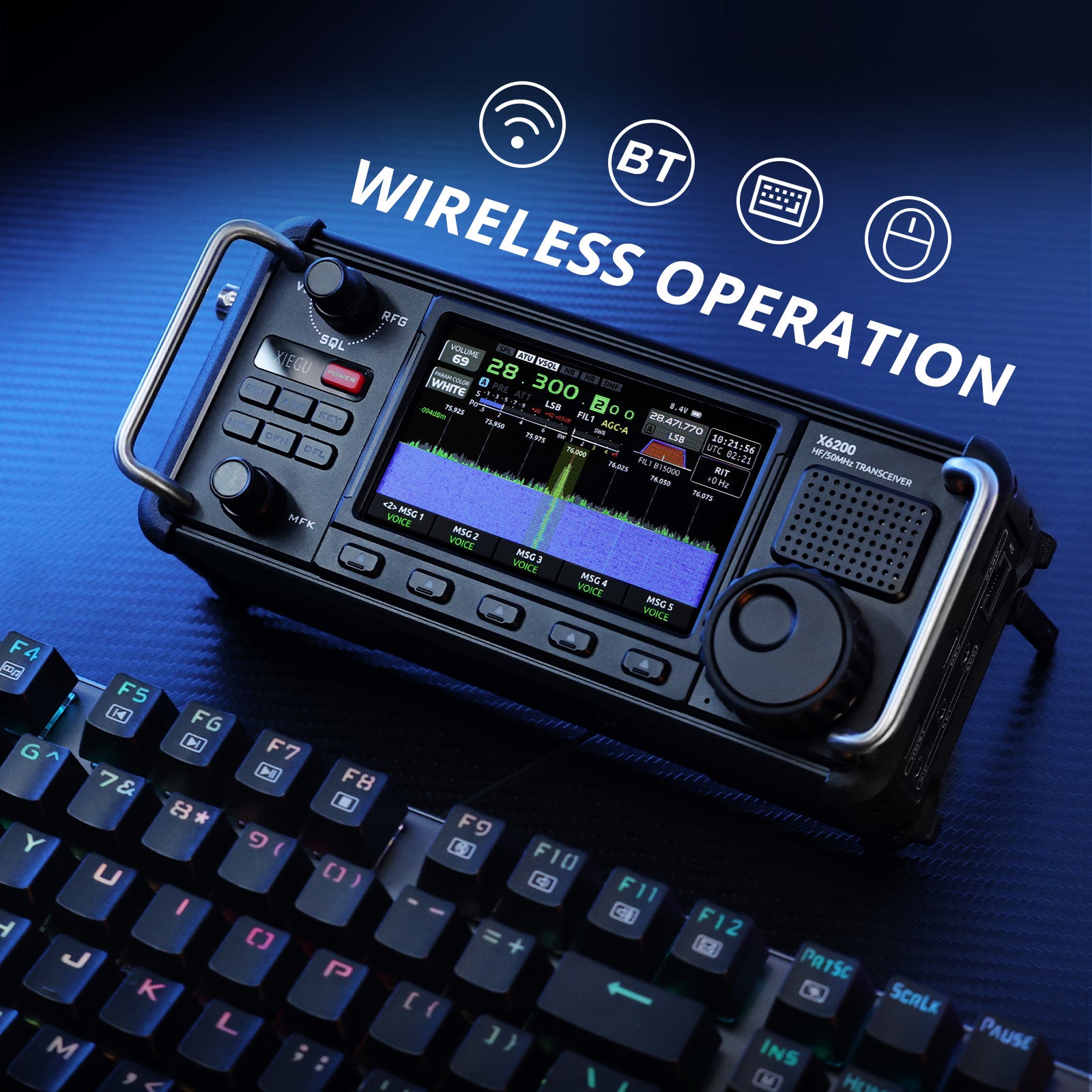

- Support remote control, wireless FT8 operation
- WFM broadcast reception, aviation band reception
on March 29, 2024

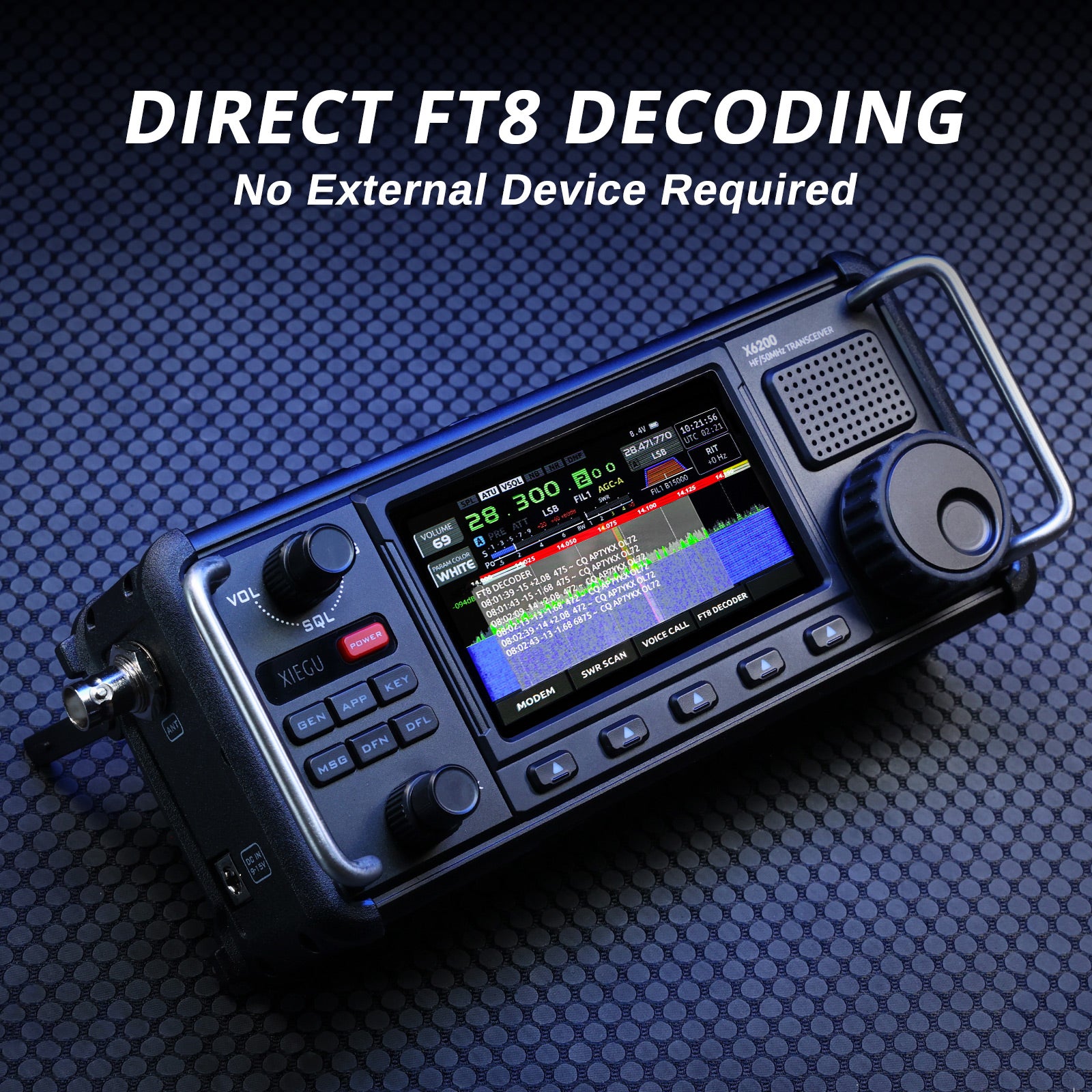

Xiegu is aware of the increasing number of customers that use their radio
for FT8. To make it easy to operate FT8 Xiegu has incorporated FT8 support in
the X6200.
Xiegu X6200 Sneak Peek
on March 21, 2024
1. The images currently displayed are only of the engineering prototype, they do
not represent the final form of the product.
2. For more latest news, please subscribe to the Radioddity newsletter.
3. Please credit the source when reposting the images.
4. X6200 discussion group |
https://groups.io/g/xiegu-x6200
on December 25th
(Merry Christmas!)
1. The images currently displayed are only of the engineering prototype, they do
not represent the final form of the product.
2. For more latest news, please subscribe to the Radioddity newsletter.
3. Please credit the source when reposting the images.
4. X6200 discussion group |
https://groups.io/g/xiegu-x6200

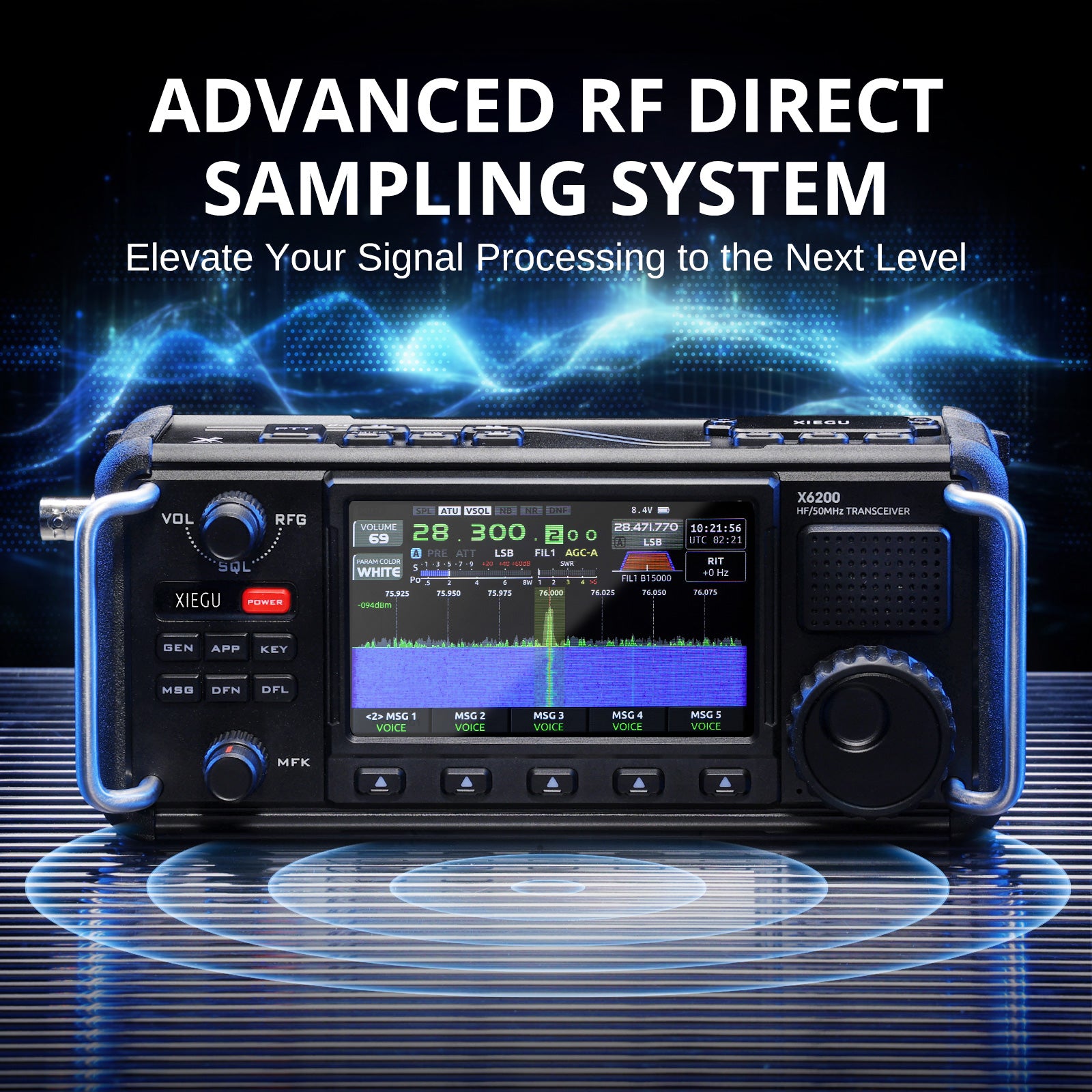

The Xiegu X6200 uses a high-performance DRFS
platform architecture and is equipped with a powerful baseband and RF unit,
bringing amateur radio enthusiasts a more convenient user experience. The new
platform architecture provides enthusiasts with higher receiver sensitivity and
lower noise coefficient, allowing for clearer reception of signals from
different locations.
In addition, X6200 possesses all the characteristics of a super portable device,
making it easy to carry outdoors or while traveling. Its compact design and
portability allow users to listen to their favorite signals at any time and any
place, making the use of transceivers more free and flexible.

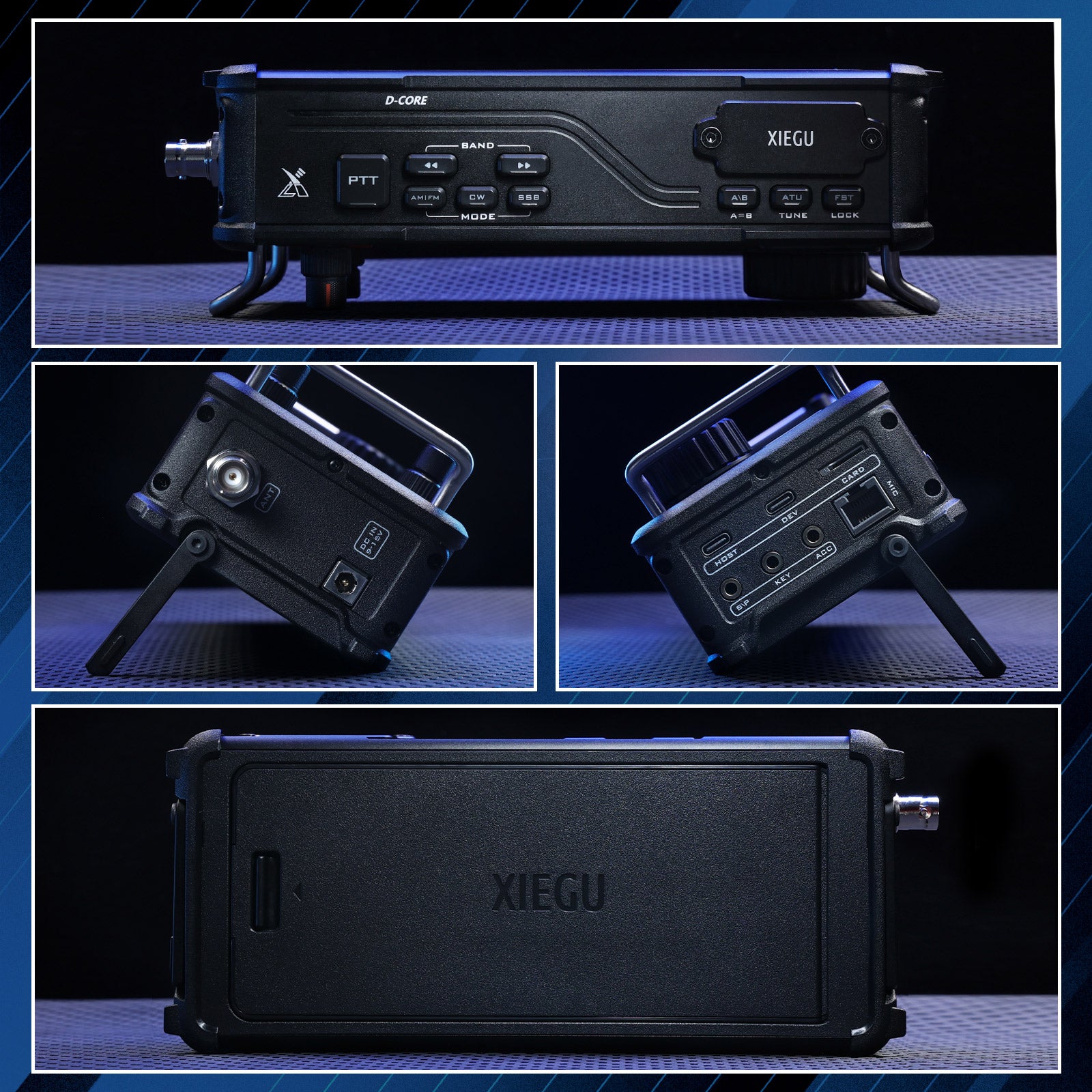

The whole machine provides two USB interfaces, supporting HOST and DEVICE. It
provides an ACC interface, with a dedicated cable, it can be directly connected
to the
XPA125B amplifier, to achieve automatic control. It provides a 3.5mmKEY
interface for the connection of hand keys and automatic keys. It provides an S/P
interface, which can be customized as an external speaker or earphone through
menu selection.
X6200 has two preset external expansion component installation positions, which
can be used to install external expansion components and integrate them with the
host, allowing for applications in other frequency bands or installation of
peripherals.
Features:
Portable Design: X6200 inherits the compact and high performance
characteristics of the X6 series. As a new generation flagship ultra-portable
transceiver, it combines excellent performance with advanced features to meet
your various expectations and requirements for portable ones.

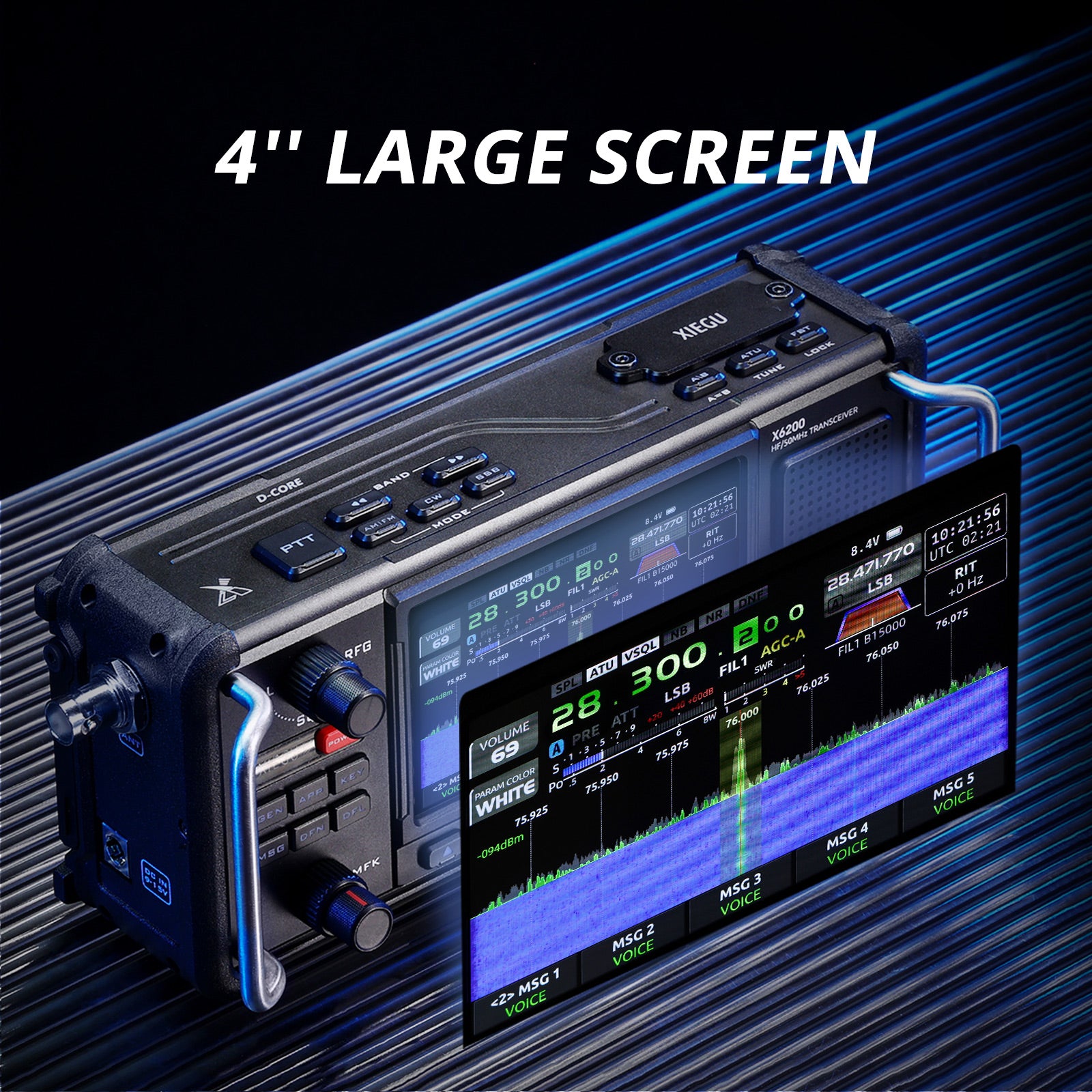

Color Screen: The 4-inch high-resolution color screen (800*480), carrying
a powerful quad-core mobile processor, is designed to meet future expansion
requirements.
Rich Functions: It has all the elements that an ultra-portable machine
should have, including built-in detachable battery pack, built-in
high-performance automatic antenna tuner, built-in microphone, recording call,
preset message sending, and standing wave scanner.
SDR Structure: X6200 has unique features of SDR, such as variable
bandwidth digital filters, digital noise reduction, digital pulse interference
elimination, recording call, spectrum/waterfall display, preset messages,
modulation/demodulation (CW/RTTY/PSK), etc., meeting the requirements of
mainstream digital device configurations.
High-performance DRFS Platform can meet your expectations and needs.
Functions comparable to desktop computers, such as remote control, band map,
variable band, width digital filter, digital noise reduction, etc., everything
needed is ready.
Highly Scalable System: The system, which incorporates deep optimization,
not only achieves powerful current functionality but also meets the future
expansion needs for additional features, providing players with a richer control
experience.
Highlights
- HF/50MHz all-mode
- Detachable battery pack
- Built-in efficient automatic antenna tuner
- Integrated standing wave scanner and voice pager
- Integrated modem, preset message, CW automatic call
- Integrated USB line control/transmission, built-in sound card
- Support remote control, wireless FT8 operation
- WFM broadcast reception, aviation band reception
| # General Specifications | |
| Frequency receive |
0.5MHz-30MHz 50MHz~54MHz 88~108MHz (FM broadcast) 108~136MHz (aviation band) |
| Frequency transmit: | 1.8-2.0MHz | 3.5-4.0MHz* 5.3515~5.3665MHz | 7.0-7.3MHz* 10.1-10.15MHz | 14.0-14.35MHz 18.068-18.168MHz | 21.0-21.450MHz 24.89-24.99MHz | 28.0-29.7MHz 50~54MHz* |

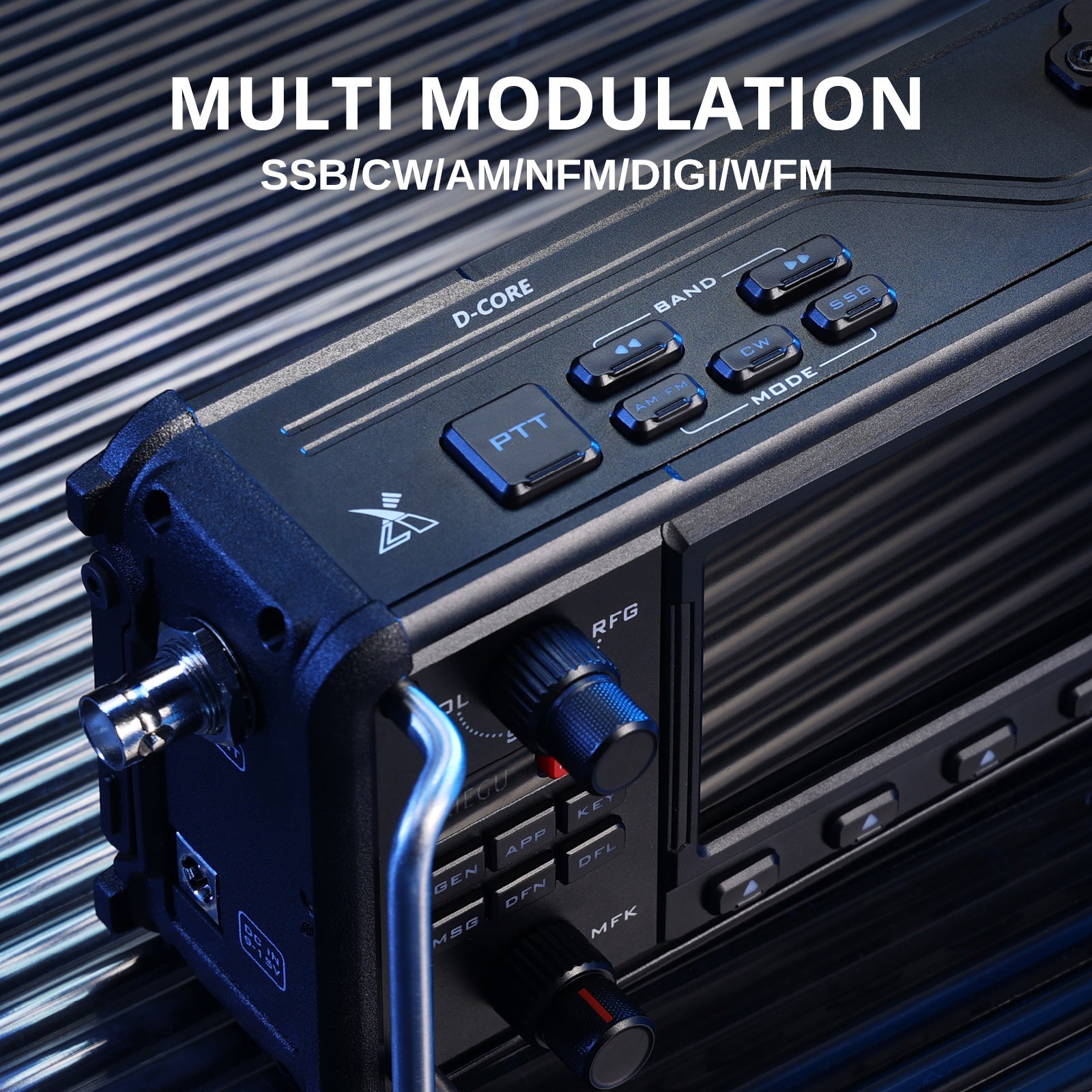

| Operating modes: | SSB, CW, FM, RTTY, AM |
| Minimum step: | 1Hz |
| Antenna impedance: | 50Ω |
| Working temperature: | 0°C ~ +50°C |
| Transmission power: | Battery: 5W±1dB @Max
External power: 8W ±1dB @Max |
| External power supply voltage: | DC 9.0V~15.0V |
| Current consumption: | Standby: 650mA @Max
Transmission: 3.5A @Max |
| Antenna interface type: | BNC |
| Frequency stability: | ±1ppm (20 minutes after start) |
| Overall dimensions: | Approximately 200*89*51mm |
| # Transmitter | |
| Spurious suppression: |
Stray suppression: ≥60dB Carrier suppression: ≥40dB Sideband suppression: ≥50dB |
| SSB frequency response range: | 300Hz~2700Hz(-6dB) |
| FM modulation frequency offset: | ±5kHz |
| Microphone impedance: | 200Ω ~10kΩ |
| Antenna tuner tuning impedance range: | 20Ω ~ 175Ω |
| Tuning time: |
Antenna tuner initial tuning time: ≤10s Antenna tuner tuning read time:≤0.1s |
| # Receiver | |
| Received sensitivity (10dBS/N) (PRE=on, ATT=off, NB=off, NR=off, SSB/CW/AM = 10dB S/N, FM = 12dB SINAD) |
Band | SSB/CW/FM | AM 0.55 - 1.79MHz | / | 10uV 1.8~27.999MHz | 0.20uV | 2uV 28.0~30.0MHz | 0.20uV | 2uV 50.0~54.0MHz | 0.20uV | 2uV |
| Reception sensitivity (WFM/AM): | 88~108MHz | Greater than 5uV |
| Reception sensitivity (WFM/AM): | 108~136MHz | Greater than 10uV |
| MDS: | -138dBm |
| Audio output: | 0.5W (4Ω, ≤10% THD) |
Note: The specifications and parameters of the product are subject to the actual sales status.
1. The 80-meter or 3.5 MHz band is a band of radio frequencies allocated for amateur radio use, from 3.5 to 4.0 MHz in IARU Region 2 (consisting mostly of North and South America), and generally 3.5 to 3.8 or 3.9 MHz in Regions 1 and 3 (the rest of the world) respectively.
2. The 40-meter or 7-MHz band is an amateur radio frequency band, spanning 7.000-7.300 MHz in ITU Region 2, and 7.000-7.200 MHz in Regions 1 & 3.
